0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket
Ohmalloy 0.511mm Type K Fiberglass insulation Stainless Steel jacket Thermocouple Extension Cable
Specification:
| Product name | Thermocouple cable |
| Conductor Material | +Chrome/—Alumel |
| Insulation material | Fiberglass against 600°C |
| Conductor Dia | 0.511 mmx2 |
| Standard | ANSI MC 96.1 |
| Insulation Color | Red/Yellow |
| Shielding | / |
| Jacket | Stainless steel |
| Packing | 100m/roll |
| Gross weight | 3.6KG/roll |
| Delivery time | 7 working days after payment |
| Payment | T/T or L/C at sight, Paypal |
| Shipping | By DHL, Fedex, Aramex, etc. |
Conductor material:
| Variety | Type |
| NiCr-NiSi | K |
| NiCr-CuNi | E |
| Fe-CuNi | J |
| Cu-CuNi | T |
| NiCrSi-NiSi | N |
| NiCr-AuFe0.07 | NiCr-AuFe0.07 |
Insulating and sheath material:
| insulation | PTFE | PFA | TEF | FEP | PVC | FG | silicone | kapton | Quartz fiber |
| Max temp(°c) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 400 | 800 |
Normal available condutor size:
| Solid type | 0.2mm | 0.3mm | 0.5mm | 0.8mm | 1.0mm | 1.13mm | 1.29mm | 1.37mm |
| Stranded type | 0.2mm*7 | 0.3mm*7 | 0.43mm*7 | 0.52mm*7 | 0.67mm*7 |
Thermocouple compensation cables are thermocouple wires with insulation covers which connect the thermocouple and the measuring equipment, to compensate the error caused by the temperature variation between them.
Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,
The MOQ for fiberglass insulated wire can be any length, even 5 meters is workable.
For the insulation such as PVC, PTFE, we can supply 500meters as MOQ. The cables can help many customers on trial stage and test. Based on the different standard of different country, we can produce according each customer’s requirement.
The applications of thermocouple compensation cable:
These kind of cables are mainly used in the connection between thermocouple and temperature measure devices, such like power industry, chemical industry, petroleum industry, etc.
Produce Video:
https://www.youtube.com/watch?v=BqSjyC15Jk4

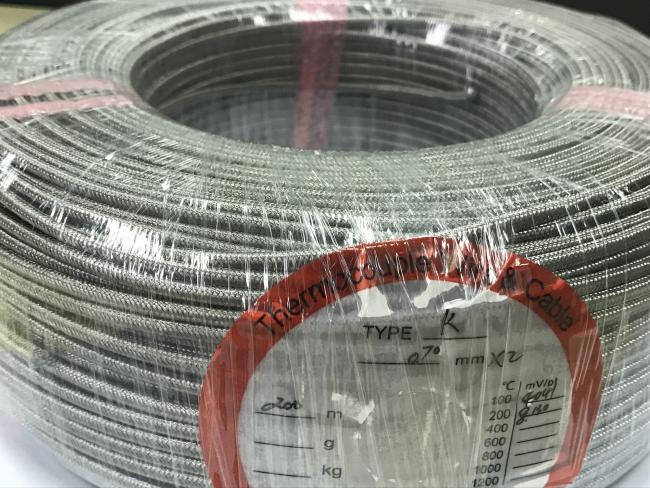

Products& Package:
Payment&Shipping:
