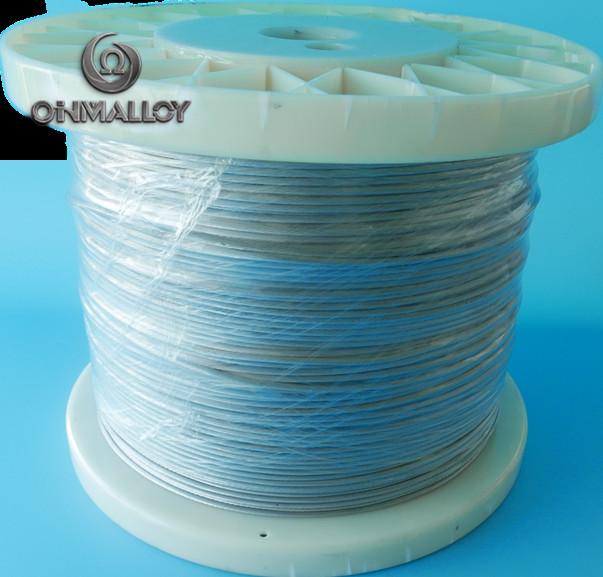

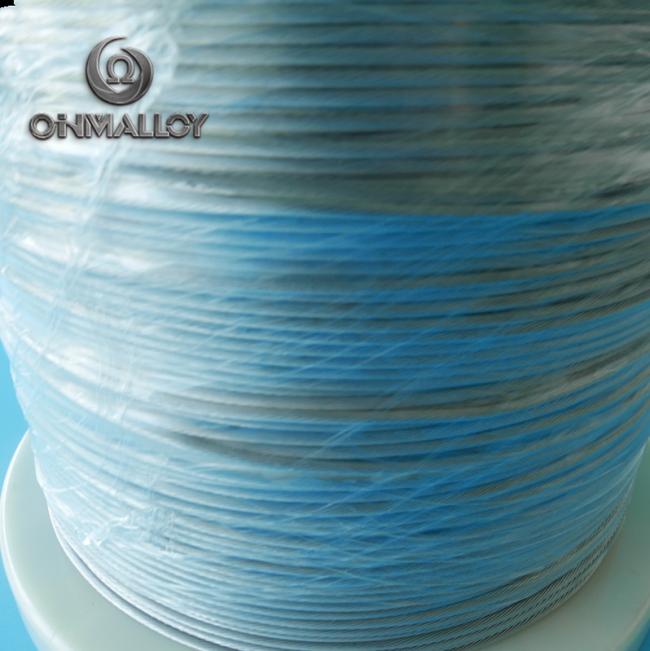

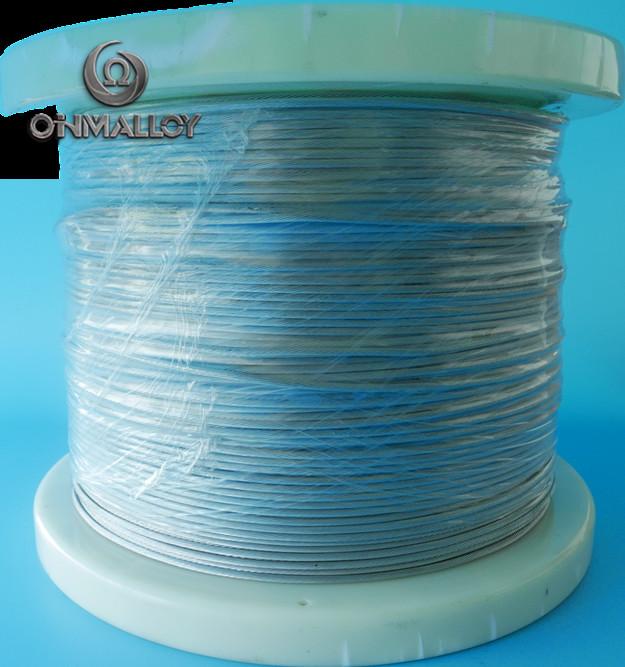

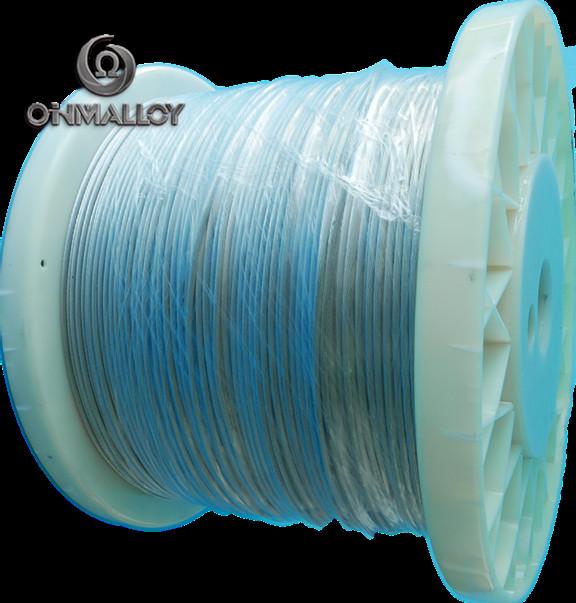

19 Mulit NiCr 2080 Heating Stranded Wire , Nichrome Stranded Wire
NiCr A Nichrome Alloy 19 mulit NiCr 2080 heating stranded wire
Product brief introduction:
An alloy wire used at operating temperatures up to 1200°C (2200°F). Its chemical composition gives good oxidation resistance especially under conditions of frequent switching or wide temperature fluctuations.
| Chemical Composition | Designations | Typical Applications | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W.Nr. 2.4869 UNS N06003 AWS 080 | Heating elements in both domestic and industrial appliances and in control resistors |
| Density | 8.31g/cm³ | 0.300 lb/in³ |
| Electrical Resistivity at 20°C | 108 microhm • cm | 650 ohm. Circ. mil/ft |
| Maximum Operating Temperature For use as a Heating Element For use in Hot Cutting, Fabrication – Line Bending | 1200 °C 300 °C | 2200 °F 572 °F |
| Melting Point | 1400 °C | 2550 °F |
| Coefficient of Expansion | 12.5 µm/m °C (20 – 100°C) | 7.0 x 10-6 in/in °F (70 – 212°F) |
| Temperature-Resistance Factor (F) At: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20°C | 100°C | 200°C | 300°C | 400°C | 500°C | 600°C | 700°C | 800°C | 900°C | 1000°C | 1100°C | 1200°C |
| 68°F | 212°F | 392°F | 572°F | 752°F | 932°F | 1112°F | 1292°F | 1472°F | 1652°F | 1832°F | 2012°F | 2192°F |
| 1.00 | 1.006 | 1.015 | 1.028 | 1.045 | 1.065 | 1.068 | 1.057 | 1.051 | 1.052 | 1.062 | 1.071 | 1.080 |
Application: A heating element repair kit comes with 80/20 (19 multi-strand), in addition, Heater Core Wire is Consists of 80/20 nickel chrome alloy (19 multi-strand) on 500m/1640' roll.
Nichrome Stranded Wire is not always 19 multi strand,we can also produce it upon your request.
Wire Rope & Strand
Range from 0.4mm (0.0157″) to 20mm (0.787″)
Order quantity 3 metres (10′) to 3 tonnes (10,000′)
Send us your wire profile for quoting
