N4 N02201 Low Carbon Pure Metals Pure Nickel Wire / Rod / Plate

Price Negotiable

Price: negotiable

MOQ: 5

Delivery Time: Negotiable

Brand: OHMALLOY

Product Description

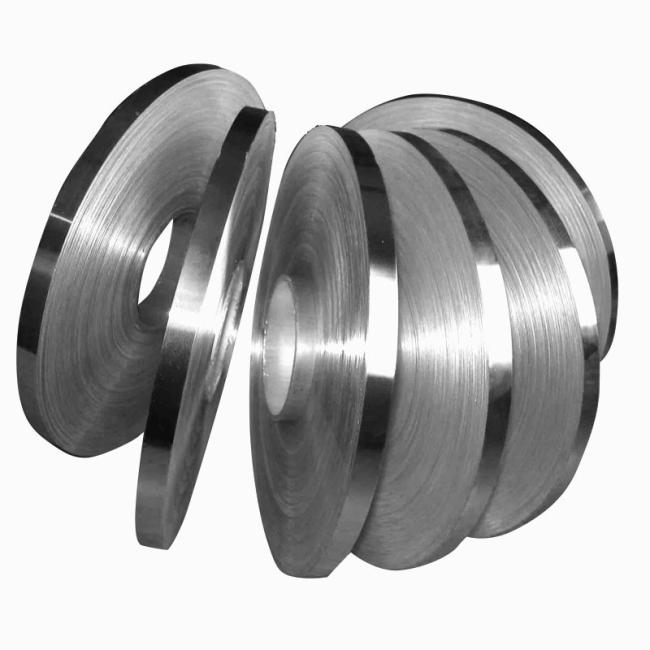

Pure Nickel Wire-N4 N02201 Low Carbon Nickel wire/Rod/Plate/strip 5kg as moq

Nickel Alloy 201
Technical Data Sheet

Chemical Composition Limits
Weight%	Ni	Cu	Fe	Mn	C	Si	S
Nickel Alloy 200	99.0 min	0.25 max	0.40 max	0.35 max	0.15 max	0.35 max	0.01 max
Nickel Alloy 201	99.0 min	0.25 max	0.40 max	0.35 max	0.02 max	0.35 max	0.01 max

Alloy 201 (UNS N02201) is a commercially pure wrought nickel, with good mechanical properties and an excellent resistance to many corrosives. Nickel 201 has low carbon (0.02% max) for applications over 315°C it is mainly used for food processing equipment, chemical shipping drums, caustic handling equipment and piping, electronic parts, aerospace and missile components, rocket motor cases, magnetostrictive devices.

Typical Mechanical Properties

Material	Tensile Strength		Yield Strength (0.2% Offset)		Elongation in 2" (%)	Hardness
Material	ksi	MPa	ksi	MPa	Elongation in 2" (%)	Brinnell (3000kg)	Rockwell B
Nickel 200	55-75	380-520	15-30	105-210	55-40	90-120	45-70
Nickel 201	55-75	380-520	15-30	105-210	55-40	90-120	45-70
