Fiberglass Insulation Thermocouple Cable Multi Strands Silicone Rubber Jacket

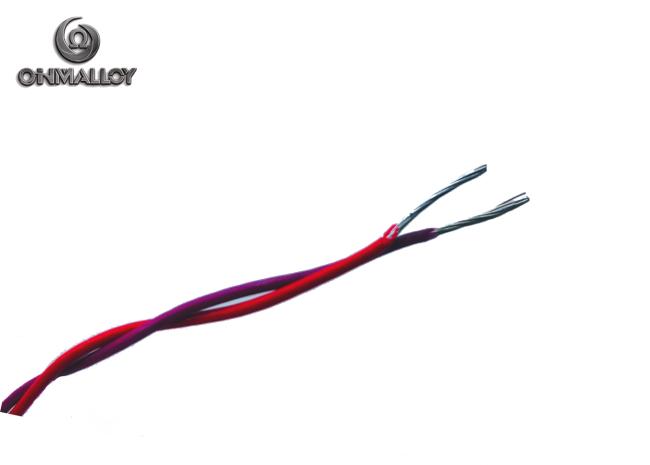

PEF/Fiberglass Insulation Prices Type J Thermocouple Cable Multi Strands 24AWG
TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.
1. Product Details
1. Chemical Composition
| Material | Chemical composition (%) | ||||
| Ni | Cu | Si | Iron | Al | |
| JP(Iron) | 100 | ||||
| JN(Constantan) | 45 | 55 | |||
2. Physical Properties and Mechnical Properties
|
Material |
Density(g/cm3) |
Melting point(℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| JP(Iron) | 7.8 | 1402 | >240 | 12.0(20℃) | >20 |
| JN(Constantan) | 8.8 | 1220 | >390 | 49.0(20℃) | >25 |
3. EMF Value Range at Different Temperature
| Material | EMF value (μV) | |||||||||||
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | |||||||
| JP-JN | 5187~5351 | 10696~10862 | 16244~16410 | 21760~21936 | 27281~27505 | 32962~33242 | ||||||
| EMF value Vs Pt(μV) | ||||||||||||
| 700℃ | 750℃ | 760℃ | 800℃ | 900℃ | 1000℃ | |||||||
| 38958~39306 | 42089~42473 | 42725~43113 | ||||||||||
2. Size Range Reference
| Alloys Name | Type | Dimension | |
| SP-KP-PF-PF-0.5RW | Wire | D=0.03mm~8mm | |
| SP-KP-PF-PF-0.5RR | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| SP-KP-PF-PF-0.5RS | Strip | W=8~250mm | T=0.1~3.0 |
| SP-KP-PF-PF-0.5RF | Foil | W=6~120mm | T=0.003~0.1 |
| SP-KP-PF-PF-0.5RB | Bar | Dia=8~100mm | L=50~1000 |
3. Production Progress
3. Production Progress
4. Package Reference
5. Our Service
6. Questions and Answers
Q1:How can I contact with your company?
A1:We have multiple communication channels : Tel/Skype/Whatsapp/Wechat :+86-15826530281
Q2:Do you provide free samples?
A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.
Q3:What is your payment terms?
A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,,Paypal is OK.
Q4:What is your lead time?
A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.
Q5:What is your working time?
A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.
Q6:Can i visit your factory?
A56: We will warmly welcome your visit and arrange the proper schedule for you.
