Type K / N Nicr9010 Nichrome Alloy For Thermocouple Plug Pin Thickness 1mm 0.75mm
Price:
35usd/kg -45usd/kg
MOQ:
20kg
Delivery Time:
20-30 working day
Brand:
OHMALLOY
Product Description

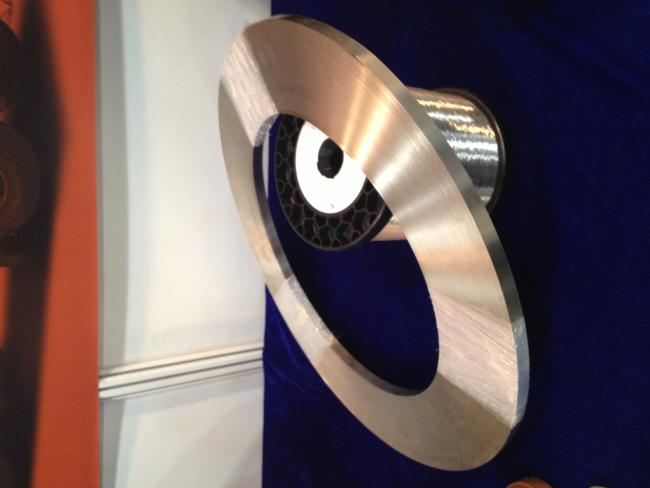

OHMALLOY have 20 years in producing the thermocouple alloy strip. The thickness can be from 0.1mm to 2mm while the width can be from 5mm to 210mm.
Usually, we make the normal size such as 1mmX50mm, 0.75mmX50mm, 0.75mmX100mm, they are mainly used for all kinds of thermocouple plug pin. And we also can make special size based on client’s unique requirement.
For the type KN, We have two types. One is china standard NiSi3 ( Ni 97%, Si 3%), the other one is NiAl ( IEC standard).
The available thermocouple type and alloy material:
| Name and code of alloy wires | ||||
| Positive | Negative | |||
| Name | Code | Name | Code | |
| NiCr10 (Chromel) | KP |
NiSi3 /(Alumel) (China standard) |
KN | |
|
NiAl/(Alumel) (IEC standard) |
KN | |||
| NiCr14.2Si | NP | NiSi4 | NN | |
| NiCr10 (Chromel) | EP | CuNi45 (Constantan) | EN | |
| Fe | JP | CuNi45 (Constantan) | JN | |
| Cu | TP | CuNi45 (Constantan) | TN | |
A
Thermocouple wire electromotive force (EMF) Tolerance:
| Thermocouple Type | Grade | Temperature range ℃ | Electromotive force(EMF) Tolerance | |
| IEC (EN)60584 | ASTM E230 | |||
| Type K & Type N | Ⅰ | -40～1100 | ±1.5℃ or ±0.4%t | ±1.1℃ or ±0.4% |
| Ⅱ | -40～1300 | ±2.5℃ or ±0.75%t | ±2.2℃ or ±0.75% | |
| Type E | Ⅰ | -40～1100 | ±1.5℃ or ±0.4%t | ±1.0℃ or ±0.4% |
| Ⅱ | -40～1300 | ±2.5℃ or ±0.75%t | ±1.7℃ or ±0.5% | |
| Type J | Ⅰ | -40～750 | ±1.5℃ or ±0.4%t | ±1.1℃ or ±0.4% |
| Ⅱ | -40～750 | ±2.5℃ or ±0.75%t | ±2.2℃ or ±0.75% | |
| Type T | Ⅰ | -40～350 | ±0.5℃ or ±0.4%t | ±0.5℃ or ±0.4% |
| Ⅱ | -40～350 | ±1.0℃ or ±0.75%t | ±1.0℃ or ±0.75% | |
A
