0Cr21Al4 Soft Annealed Acid Wash Fecral Wire Electric Resistance 7.1g/Cm3 Density
0Cr21Al4 soft annealed acid wash electric resistance fecral wire for drawing SWG16
(Common Name:0Cr21Al4)
OhmAlloy123 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by moderate resistivity and good oxidation resistance.It is suitable for use at temperatures up to 1100°C.This type of electric heating alloy is effecient , cheap and energy saving! We guarantee you will get a best product, quick response, fast delivery and nice service. We are also glad to provide support for any qusetion from you.
Typical applications for OhmAlloy123 are used as elements in home appliances,melting and industrial furnace.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.12 | 0.025 | 0.025 | 0.70 | Max 1.0 | 18.0~21.0 | Max 0.60 | 3.0~4.2 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 550 | 750 | 16 |
Typical Physical properties
| Density (g/cm3) | 7.35 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.23 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 13.5 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.49 |
| Melting point (℃) | 1500 |
| Max continuous operating temperature in air (℃) | 1100 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 | 1.120 | 1.132 | 1.142 | 1.150 | - | - | - |

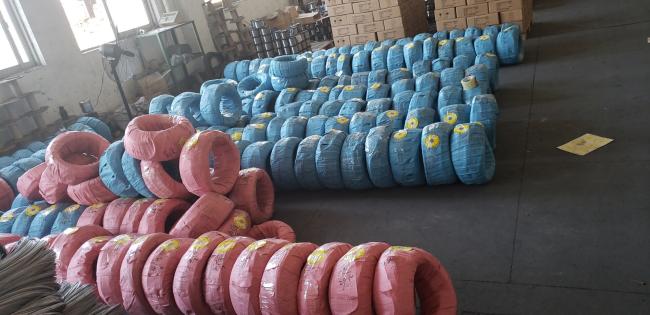

Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy125W | Wire | D=0.03mm~8mm | ||
| OhmAlloy125R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy125S | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy125F | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy125B | Bar | Dia=8~100mm | L=50~1000 |
|
