1.6mm / 2.0mm Metal Wire Tafa 75b Nial95/5 High Temperature Oxidation Resistance
1.6mm/2.0mm Tafa 75b Nial95/5 Thermal Spray Wire for Arc Spray System
(Common name:NiAl 95-5, Nickel Aluminum 95/5,N9,Ni95Al5,95/5 Nickel Aluminum,F-80NA Nickel Aluminium 95/5)
This alloy is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.

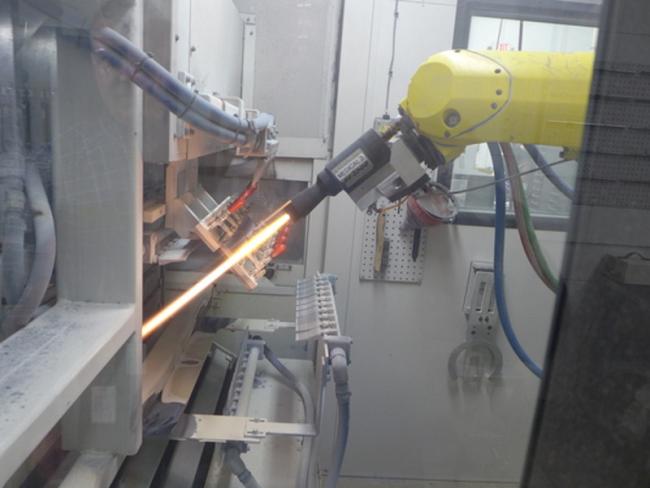

Typical applications for NiAl 95/5 are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.
Normal composition%
| Al | Mn | Fe | Ni | Si | Cu | C | Ti |
| 4.5-5.5 | Max 0.3 | Max 0.3 | Bal. | Max 0.5 | Max 0.08 | Max 0.005 | Max 0.3 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(mm2/m) | 0.42 |
Typical Deposit Characteristics
| Coating Harness | Coating Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| 23-25 HRC | 65-68Mpa | 10 lbs /hr/100A | 60-70% | Good |
| Specific heat capacity |
| Melting point (ºC) | 1010 |
| Max continuous operating temperature in air (ºC) | 800 |
| Magnetic properties | non-magnetic |
Style of supply

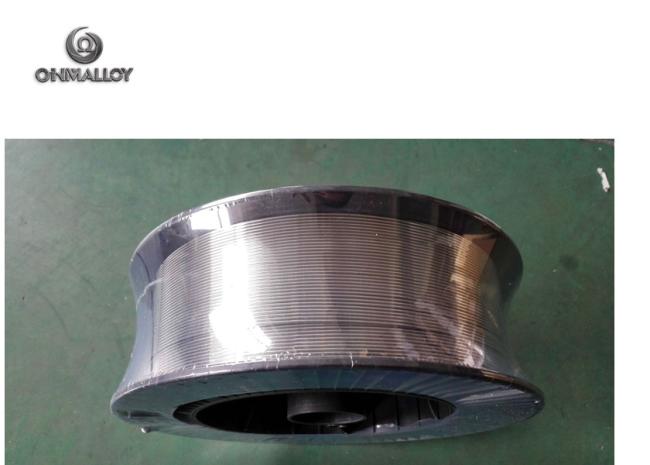

Wire:the common sizes are 1.6mm and 2.0mm,the spool size is DIN 300,and the weight per spool is about 10-15kgs.The other sizes are on the request of our customers.
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Our Services
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
We also have other thermal spray wire,welcome your inquiry if you have such requirements.
