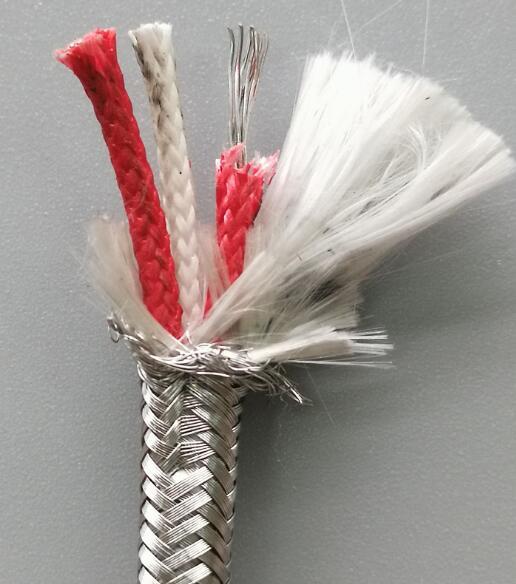

Thermocouple Extension Cable RTD Type Fiberglass Insulated Stainless Steel 304 Sheath

Cable Specification
Item Name	Type RTD/PT100 Extension Cable
Conductor Material	+Copper -Copper
Conductor Dia	7/0.3mm(0.5mm2, ±0.01mm)
Insulation and Thickness	Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Insulation Diameter	1.6mm(±0.2mm)
Jacket Material	Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Outer Sheath	SS304 Braiding
Outer Insulated Diameter	3.8mm(±0.2mm)
Weight	32KG/KM
Color Code	IEC-584-3 (+Orange -White Overall:Orange Tracer)

Thermocouple Cable Grade

A: Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B: Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”

1. For cost consideration, when the tested temperature under 200℃, compensation grade cable is preferred. But compensation grade cable will occur enormous tested temperature value deviation if the tested temperature above 200℃. The higher the tested temperature, the greater deviation be.
2. For compensation grade cable, the max testing temperature is less than 200℃, the bigger the cable, the smaller the signal loss.
3. Extension cable and compensation cable comparison:

For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.

In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
