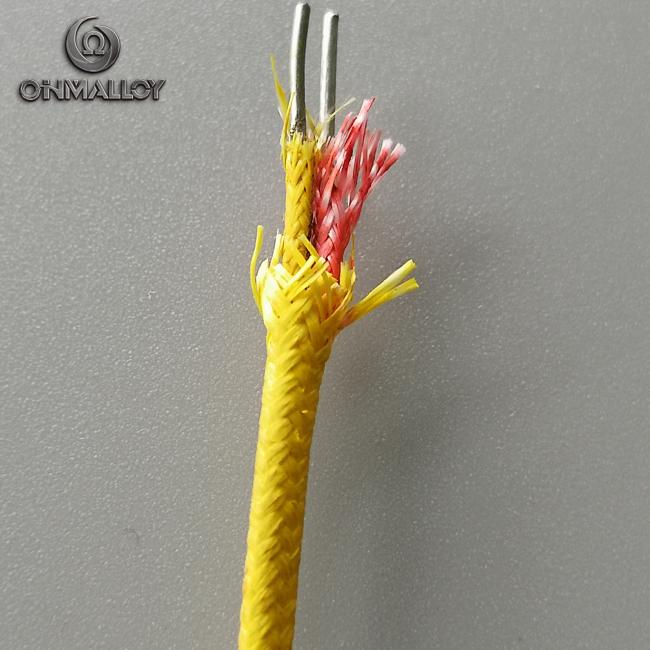

Silica Fiber Insulated 0.81mm K Type Thermocouple Cable
0.81mm K Type Thermocouple Cable 20AWG Silica Fiber Insulated Up to 1200℃ Class 1 A Accuracy
| Cable Specification | ||||
| Item Name | Thermocouple Type K Cable |  |
||
| Conductor Material | +Chromel -Alumel | |||
| Conductor Dia | 2*0.81mm(20AWG, 0.5mm2, ±0.01mm) | |||
| Inner Insulation and Thickness | Silica Fiber (long term: 1000℃, short term: 1200℃) | |||
| Inner Insulation Diameter | 1.2mm(±0.2mm) | |||
| Outer Jacket Material | Silica Fiber (long term: 1000℃, short term: 1200℃) | |||
| Finished Diameter | 1.73mmx2.83mm(±0.2mm) | |||
| Weight | 13.6KG/KM | |||
Conductor Chemical Composition
| Material | Chemical composition (%) | ||||
| Cr | Ni | Si | Mn | Al | |
| KP(Chromel) | 10 | 90 | |||
| KN(Alumel) | 95 | 1-2 | 0.5-1.5 | 1-1.5 | |
For the extension/compensation cable, the basic structure is conductor and insulation.
To increase its temperature bearing ability and to install easily, jacket is applicable.
In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
Thermocouple Extension Cable-Know How
The Negative Wire VS Pt Nominal Thermoelectromotive Force Vaule Reference
| Exten-sion Cable Code | Alloy Wire Code | Applica-tion Classifi-cation |
Measurement Terminal Temperature (℃) |
Nominal Thermoele-ctromotive force(μV) | Precision Grade Thermoelectrom-otive force(μV) | Normal Grade Thermoelectrom-otive force(μV) | ||
| Tolerance | Value Range | Tolerance | Value Range | |||||
| SC or RC | SNC or RNC | G | 100 | -127 | ±20 | -107～-147 | ±48 | -79～-175 |
| H | 100 | -127 | - | - | ±48 | -79～-175 | ||
| 200 | -396 | - | - | -348～-444 | ||||
| KCB | KNCB | G | 100 | 3322 | ±34 | 3288～3356 | ±76 | 3246～3398 |
| KX | KNX | G | -25 | -342 | ±15 | -327～-357 | ±31 | -311～-373 |
| 100 | 1240 | 1225～1255 | 1209～1271 | |||||
| H | -25 | -342 | ±15 | -327～-357 | ±31 | -311～-373 | ||
| 100 | 1240 | 1225～1255 | 1209～1271 | |||||
| 200 | 2160 | 2145～2175 | 2129～2191 | |||||
| NX | NNX | G | -25 | -278 | ±14 | -264～-292 | ±30 | -248～-308 |
| 100 | 989 | 975～1003 | 959～1019 | |||||
| H | -25 | -278 | ±14 | -264～-292 | ±30 | -248～-308 | ||
| 100 | 989 | 975～1003 | 959～1019 | |||||
| 200 | 1970 | 1956～1984 | 1940～2000 | |||||
| EX | ENX | G | -25 | -805 | ±47 | -758～-852 | ±83 | -722～-888 |
| 100 | 3506 | 3459～2848 | 3423～3589 | |||||
| H | -25 | -805 | ±47 | -758～-852 | ±83 | -722～-888 | ||
| 100 | 3506 | 3459～2848 | 3423～3589 | |||||
| 200 | 7451 | 7404～7498 | 7368～7534 | |||||
| TX | TNX | G | -25 | -805 | ±20 | -785～-825 | ±48 | -757～-853 |
| 100 | 3506 | 3486～3526 | 3458～3554 | |||||
| H | -25 | -805 | ±38 | -785～-825 | ±78 | -727～-883 | ||
| 100 | 3506 | 3486～3526 | 3428～3584 | |||||
| 200 | 7451 | 7413～7489 | 7373～7529 | |||||
