Extension PVC Insulated SS304 Sheath RTD PT100 Cable

Price Negotiable

MOQ: 500 meters

Delivery Time: 3-15working days after payment confirmed

Brand: OHMALLOY/OEM

Product Description

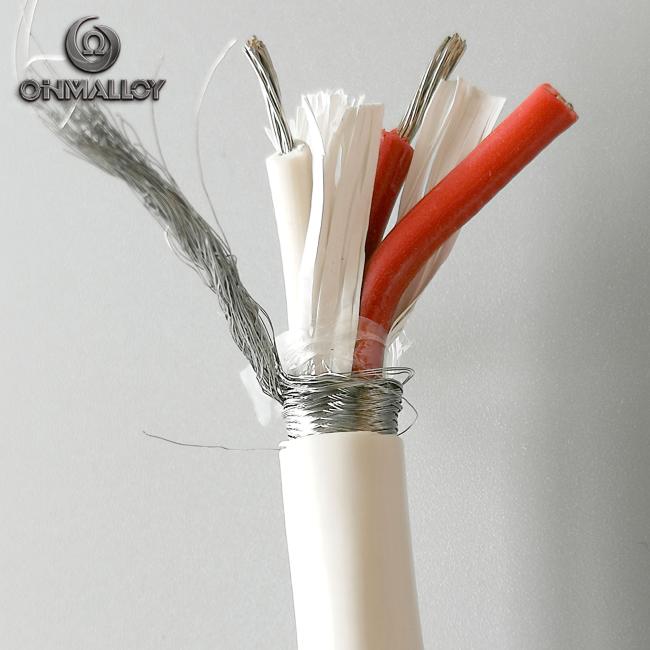

RTD PT100 Cable PVC Insulated SS304 Sheath Sea Ship Cable 4-20mA

Cable Specification
Item Name	RTD Extension Cable
Conductor Material	Nickel Plated Copper
Conductor Dia	3*19/0.3mm(16AWG, , ±0.01mm)
Inner Insulation and Thickness	High Temperature PVC(105℃) 0.5mm
Inner Insulation Diameter	3.6mm(±0.2mm)
Inner Sheath	Tinned Copper Braiding
Outer Jacket Material	High Temperature PVC(105℃) 0.8mm
Finished Diameter	9.1(±0.4mm)
Weight	124.5KG/KM

For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.

In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.

Thermocouple Extension Cable-Know How

The Compensation Wire Nominal Chemical Composition

Alloy Name	Code	Nominal Chemical Composition(%)
		Cu	Ni	Cr	Si	Fe	Mg
Copper	SPC	100	-	-	-	-	-
	RPC
	KPC
	TPC
CuNi0.6	SNC	99.4	0.6	-	-	-	-
	RNC
NiCr10	KPX	-	90	10	-	-	-
	EPX
NiCr14Si	NPX	-	84	14.5	1.5	-	-
NiSi3	KNX	-	97	-	3	-	-
NiSi4Mg	NNX	-	94.5	-	4.5	-	1.0
CuNi40	KNCB	60	40	-	-	-	-
CuNi22	KNCA	78	22	-	-	-	-
CuNi18	NNC	82	18	-	-	-	-
CuNi45	ENX	55	45	-	-	-	-
	JNX
	TNX
Iron	NPC					100
	JPX
	KPCA

The Alloy Wire EMF Nominal Tolerance Reference

Extension Cable Code	Alloy Wire Name	Temperature Range(℃)	Application Classification	Tolerence(μV)		Thermocouple Measurement Terminal Temperature(℃)
				Precision Grade	Normal Grade
SC or RC	Cu-CuNi0.6	0-100	G	±30(±2.5℃)	±60(±5.0℃)	1000
		0-200	H	-	±60(±5.0℃)
KCA	Fe-CuNi22	0-100	G	±44(±1.1℃)	±88(±2.2℃)	900
		0-200	H
KCB	Cu-CuNi40	0-100	G
KX	NiCr10-NiSi3	-25-100	G
		-25-200	H
NC	Fe-CuNi218	0-100	G	±43(±1.1℃)	±86(±2.2℃)	900
		0-200	H
NX	NiCr14Si-NiSi4Mg	-25-100	G
		-25-200	H
EX	NiCr10-CuNi45	-25-100	G	±81(±1.0℃)	±138(±1.7℃)	500
		-25-200	H
JX	Fe-CuNi45	-25-100	G	±62(±1.5℃)	±123(±2.5℃)	500
		-25-200	H
TX	Cu-CuNi45	-25-100	G	±30(±0.5℃)	±60(±1.0℃)	300
		-25-200	H	±48(±0.8℃)	±90(±1.5℃)
