PWHT Accessories 0Cr20Ni80 19 Strands Wire Stable Resistance High Temperature Corrosion Resistance
MOQ:
500Meter
Delivery Time:
5-18 working days after payment confirmed
Brand:
OHMALLOY/OEM
Product Description
PWHT Accessories 0Cr20Ni80 19 Strands Wire Stable Resistance High Temperature Corrosion Resistance
Product Name: 19 Strand Cr20Ni80 wire
Specification: 18*0.523mm+1*0.574mm
Outer Diameter: 2.7mm(±0.2mm)
Quantity: 5000 meter
Resistance: 0.285 ohm/meter (±5%)
Conductor Material Inspection: Cr20Ni80 Material Batch NO.: C846D07
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Wire Rope Type and Standard Size Reference:
| Alloy Wire | No. of Strands | Nominal OD (mm) | King Wire Size (mm) | Resistance (Ω/m) | Length (m/kg) |
| 0Cr20Ni80 | 19*0.523 | 2.7 | 0.574 | 0.285 | 29 |
| 0Cr15Ni60 | 19*0.523 | 2.76 | 0.574 | 0.29 | 30 |
| 0Cr20Ni80 | 37*0.385 | 2.76 | 0.45 | 0.279 | 28 |
| Pure Nickel | 19*0.574 | 2.87 | 0.574 | 0.0198 | 21 |
| Nickel 212 | 19*0.574 | 2.87 | 0.71 | 0.0234 | 22 |

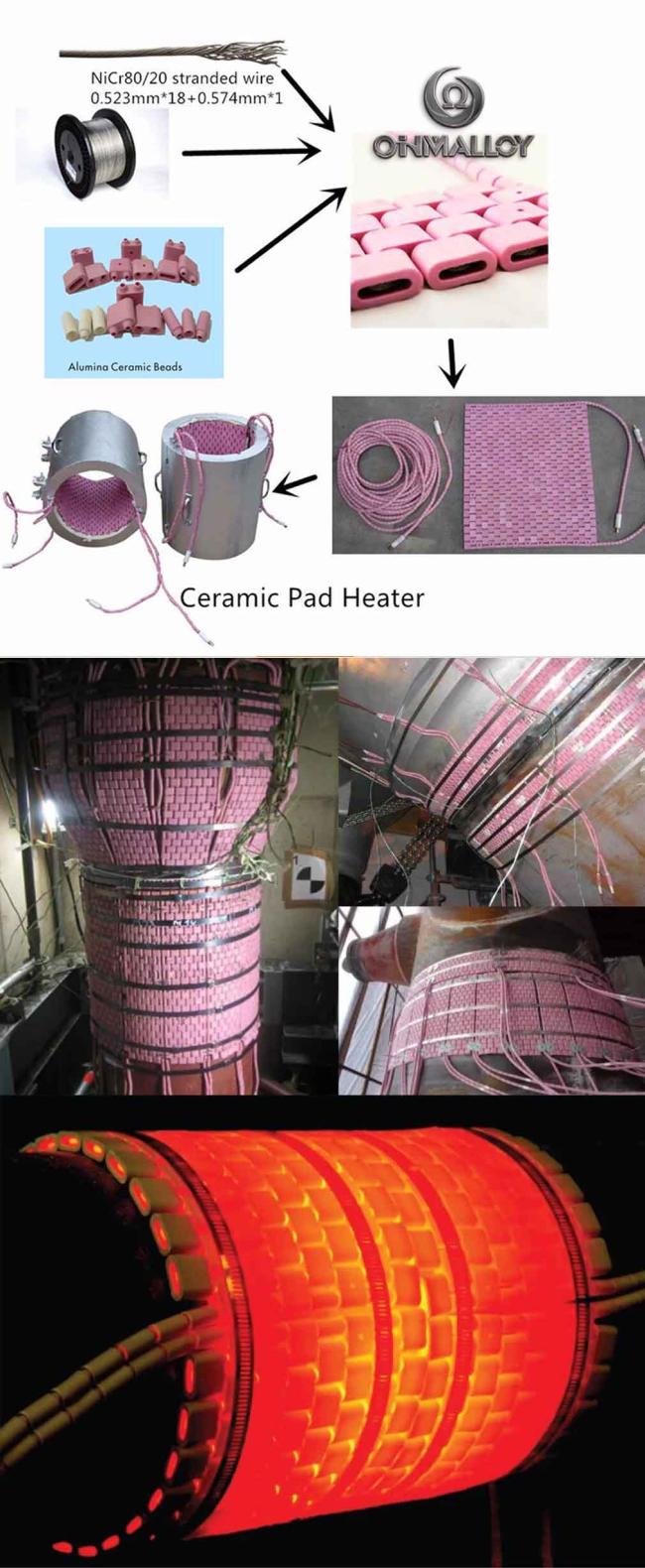

PWHT Accessories 0Cr20Ni80 19 Strands Wire Application
