Anti Corrosion Cuni23mn 2.0881 Nc030 Copper Nickel Alloy
CuNi23Mn 2.0881 NC030 Copper Nickel Alloy Rod Wire Strip Supply Competitive Price
OhmAlloy030(Resistance heating wire and resistance wire)
(Common Name:CuNi23,NC30,Curpothal30)
OhmAlloy030 is a copper-nickel alloy (Cu77Ni23 alloy) with low resistivity for use at temperatures up to 300°C.
OhmAlloy030 is typically used for applications such as heating cables, fuses, shunts, resistors and various types of controllers.
The addition of nickel to pure copper can significantly improve the strength, corrosion resistance, hardness, electrical resistance and thermoelectricity, and reduce the temperature coefficient of resistivity. Therefore, compared with other copper alloys, the mechanical and physical properties of cupronickel are extremely good, with good ductility, high hardness, beautiful color, corrosion resistance and deep drawing performance.
It is widely used as corrosion-resistant structural parts in shipbuilding, petroleum, chemical, construction, electric power, precision instruments, medical equipment, musical instruments and other departments. Some cupronickel has special electrical properties, which can be used to make resistance elements, thermocouple materials and compensation wires. Non-industrial cupronickel is mainly used to make decorative crafts.
Normal Composition%
| Nickel | 23 | Manganese | 0.5 |
| Copper | Bal. |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 170 | 350 | 25 |
Typical Physical Properties
| Density (g/cm3) | 8.9 |
| Electrical resistivity at 20℃ (Ωmm2/m) | 0.30 |
| Temperature factor of resistivity(20℃~600℃)X10-5/℃ | <16 |
| Conductivity coefficient at 20℃ (WmK) | 33 |
| EMF vs Cu(μV/℃ )(0~100℃ ) | -34 |
| Coefficient of thermal expansion | |
| Temperature | Thermal Expansion x10-6/K |
| 20 ℃- 400℃ | 17.5 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.380 |
| Melting point (℃) | 1150 |
| Max continuous operating temperature in air (℃) | 300 |
| Magnetic properties | non-magnetic |
Corrosion Resistance Performance
| Alloys | Working In atmosphere at 20℃ | Working at max temperature 200℃ | |||||
|
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | |||
| OhmAlloy030 | good | general | general | general | bad | good | |
Style of Supply
| Alloys Name | Type | Dimension | ||

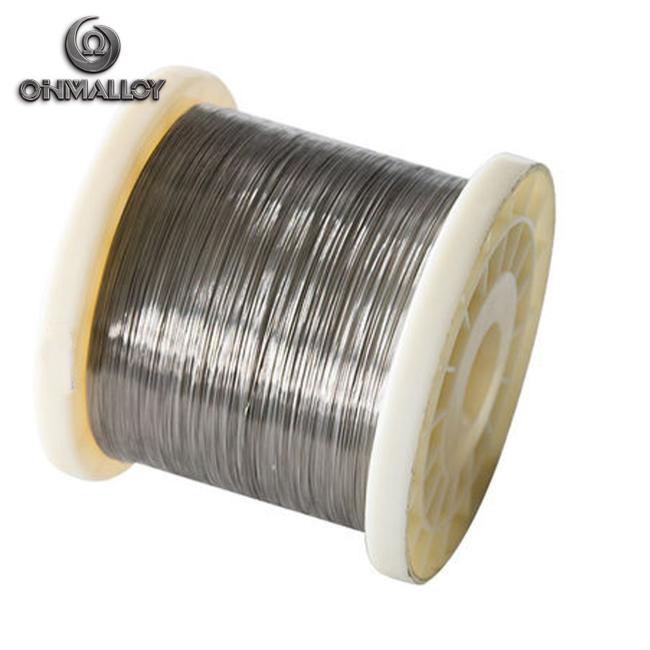

| OhmAlloy030W | Wire | D=0.06mm~8mm | ||
| OhmAlloy030R | Ribbon | W=0.4~40 | T=0.05~2.9mm | |

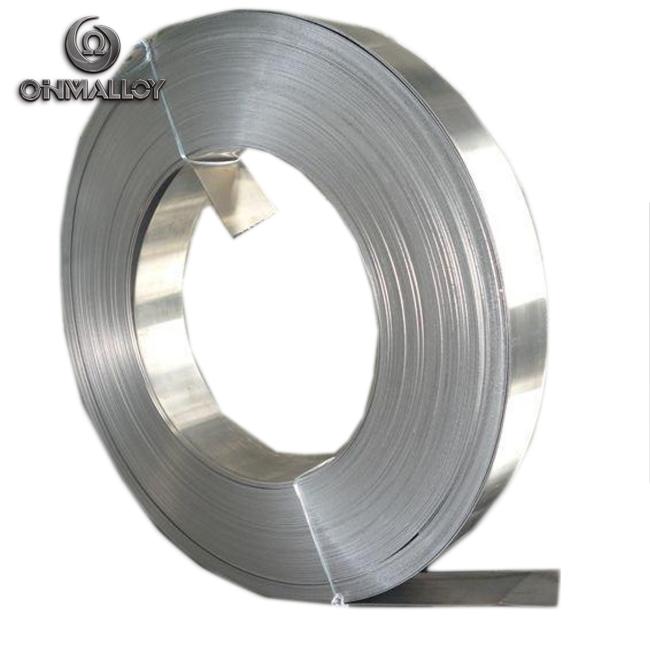

| OhmAlloy030S | Strip | W=8~200mm | T=0.1~3.0 | |
| OhmAlloy030F | Foil | W=6~120mm | T=0.005~0.1 | |

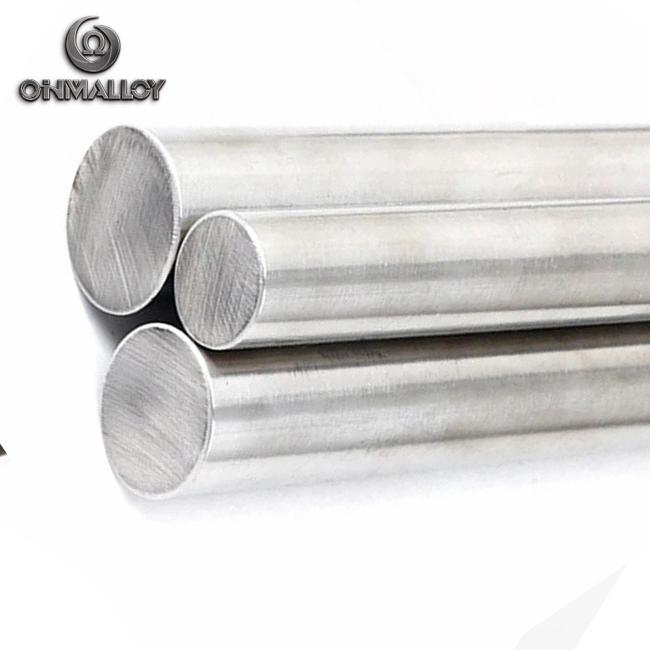

| OhmAlloy030B | Bar | Dia=8~100mm | L=50~1000 | |
