OhmAlloy040 Common Name:CuNi34,NC040.
OhmAlloy040 is a copper-nickel alloy (Cu56Ni34 alloy) with low resistivity for use at temperatures up to 350°C.
OhmAlloy040 is kind of low resistance heating alloy.It is one of the key materials of the low-voltage electrical products. It is widely used in low-voltage circuit breaker, electric blankets.thermal overload relay, and other low-voltage electrical product.
It is widely used as corrosion-resistant structural parts in shipbuilding, petroleum, chemical, construction, electric power, precision instruments, medical equipment, musical instruments and other departments. Some cupronickel has special electrical properties, which can be used to make resistance elements, thermocouple materials and compensation wires. Non-industrial cupronickel is mainly used to make decorative crafts.
Copper Nickel Alloy Production Standard(GB/T1234-95)
| Performance Brand | NC020 CuNi14 |
NC025 CuNi19 |
NC030 CuNi23 |
NC035 CuNi30 |
NC040 CuNi34 |
NC050 CuNi44 |
|
| Main Chemical Content％ | Ni | 14.2 | 19 | 23 | 30 | 34 | 44 |
| Mn | 0.3 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |
| Cu | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | |
| Element Max Working Temperature℃ | 300 | 300 | 300 | 350 | 350 | 400 | |
| Density g/cm3 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
| Resistivity Ωmm2/m, at 20℃ | 0.20±5％ | 0.25±5％ | 0.30±5％ | 0.35±5％ | 0.40±5％ | 0.49±5％ | |
|
Temperature factor of resistivity 10-5/℃(200-600℃) |
<38 | <25 | <16 | <10 | -0 | <-6 | |
| Melting Point ℃ | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | |
| Tensile Strength MPa | ≥310 | ≥340 | ≥350 | ≥400 | ≥400 | ≥420 | |
| Enlogation%(>1.0) | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
| EMF VS Copper V/℃(0-100℃) |
-28 | -32 | -34 | -37 | -39 | -43 | |
| Specific heat capacity j/gk(20℃) | 0.38 | 0.38 | 0.38 | 0.39 | 0.40 | 0.41 | |
| Conductivity coefficient w/mk at20℃ | 48 | 38 | 33 | 27 | 25 | 23 | |
| Organizational attribute | Austenitic | Austenitic | Austenitic | Austenitic | Austenitic | Austenitic | |
| Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | None-Magnetic | |
Corrosion resistance performance
| Alloys | Working In atmosphere at 20℃ | Working at max temperature 200℃ | |||||
|
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | |||
| OhmAlloy040 | good | good | good | good | bad | good | |
Style of supply
| Alloys Name | Type | Dimension | ||

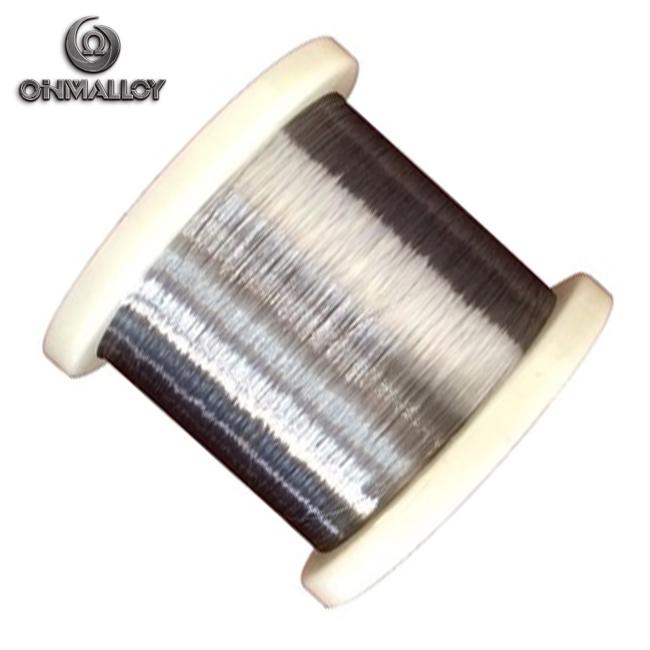

| OhmAlloy040W | Wire | D=0.06mm~8mm | ||
| OhmAlloy0409R | Ribbon | W=0.4~40 | T=0.05~2.9mm | |

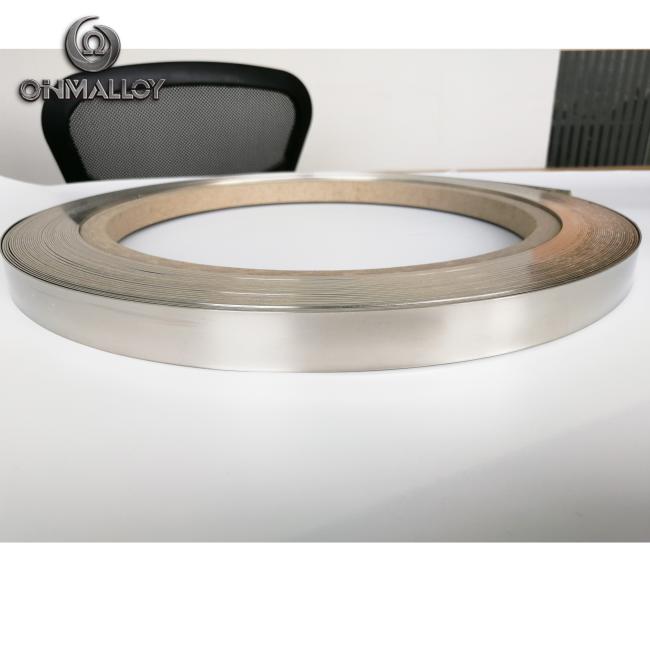

| OhmAlloy040S | Strip | W=8~200mm | T=0.1~3.0 | |
| OhmAlloy040F | Foil | W=6~120mm | T=0.005~0.1 | |
| OhmAlloy040B | Bar | Dia=8~100mm | L=50~1000 | |
