0Cr21Al6Nb Flat Strip Metal Heating Element For Household Appliances

Price Negotiable

Price: Negotiable

MOQ: 10KG

Delivery Time: within 7 days after payment

Brand: Ohmalloy

Product Description

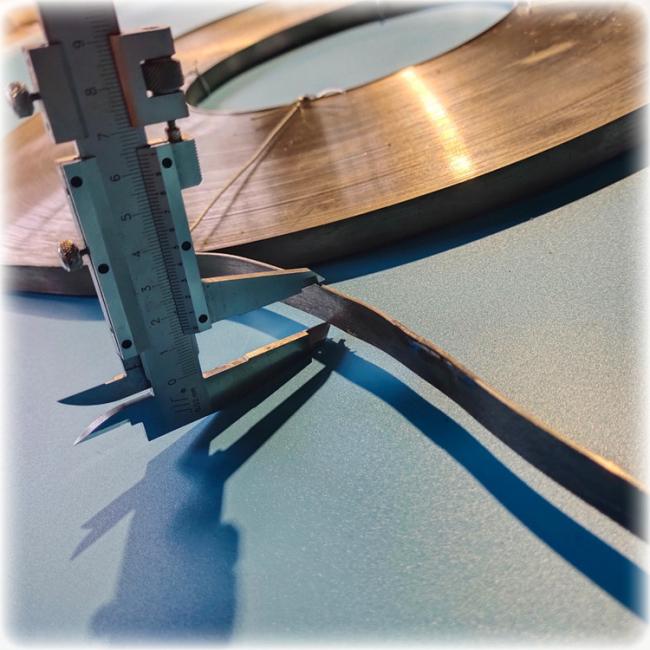

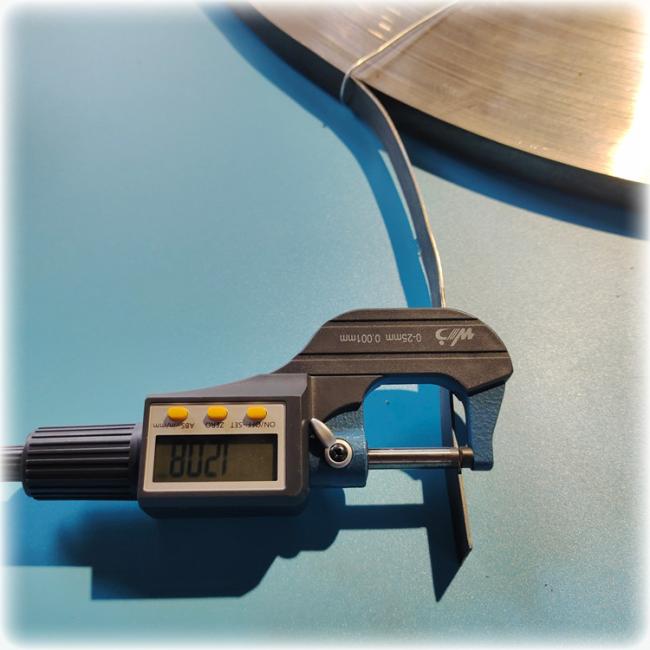

1.2*15mm/1.5*20mm/2.0*20mm heating element 0Cr21Al6Nb flat strip

OhmAlloy145:

Common Name: 0Cr21Al6Nb, A, Alloy 835

OhmAlloy145 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for OhmAlloy145 are used in industrial electric furnace, household electrical appliance and far infrared ray device.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06	0.025	0.025	0.70	Max 1.0	19.0~22.0	Max 0.60	5.0~7.0	Bal.	Nb0.5

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
550	725	22

Typical Physical properties

Density (g/cm3)	7.10
Electrical resistivity at 20℃(Ωmm2/m)	1.45
Conductivity coefficient at 20℃ (WmK)	13

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃	16

Specific heat capacity
Temperature	20℃
J/gK	0.49

Melting point (℃)	1510
Max continuous operating temperature in air (℃)	1350
Magnetic properties	non-magnetic

Style of supply

Alloys Name	Type	Dimension
OhmAlloy142AW	Wire	D=0.03mm~8mm
OhmAlloy142AR	Ribbon	W=0.4~40	T=0.03~2.9mm
OhmAlloy142AS	Strip	W=8~250mm	T=0.1~3.0
OhmAlloy142AF	Foil	W=6~120mm	T=0.003~0.1
OhmAlloy142AB	Bar	Dia=8~100mm	L=50~1000
