48v ebike battery lithium ion pack 10ah 14ah 48 volt battery charger for electric mini bike/ ezip electric bike
48v ebike battery lithium ion pack 10ah 14ah 48 volt battery charger for electric mini bike/ ezip electric bike
Brief description :

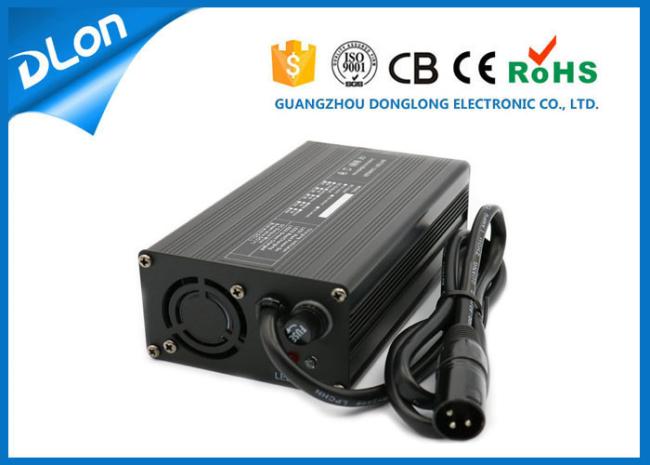

48 volt battery charger for electric mini bike/ e zip electric bike is suitable for lithium ion batteries pack 13s10ah 14ah, Easy to use and take, multi-protection, 2 led lights, Led1 red mean power on , Led 2 red is charging, green is fulled.durable and high effeciency,it is good choose for your e bike and make your e bike more powerful !
Feature :
1. Aluminium case , light weight
2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 120 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency
6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc
The 120W battery charger specification :
|
Nominal Output Voltage |
CV | CC | Transition / Cut-off Current | Net Weight | Size | |||
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid (A) | Li(A) | (kg) | (mm) | |
| DL120-12V | 14.7V | 16.8V | 14.6V | 6A | 1.2 | 0.3 | 0.9 | 135*90*50 |
| DL120-24V | 29.4V | 29.4V | 29.2V | 4A | 0.8 | 0.2 | ||
| DL120-36V | 44.1V | 42.0V | 43.8V | 3A | 0.6 | 0.15 | ||
| DL120-48V | 58.8V | 54.6V | 58.4V | 2A | 0.4 | 0.1 | ||
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
Package & Delivery
1. Package : one piece one neutral box , 12 pcs/ carton, can be customized
2. Delivery : 5 to 7 working days , big order according to actual quantity
3. Delivery port : Guangzhou port
4. Payment term : T/T or Western Union
5. Delivery way : by sea / by air / by express or as your requirement
Charging Procedure :
- First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
- Then city power plug to socket , the indicator is red, charger will be into the charging state .
- When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
- When fully charged, disconnect the city power first, then disconnect the battery cable.
For more information about electric bike battery charger or other items, don't hesitate to contact me !!
