Recycle Silicone Impregnated Fiberglass Cloth For Heat Protection Fireproof Covers
Recycle Silicone Impregnated Fiberglass Cloth For Heat Protection Fireproof Covers
There is a wide range of silicone fiberglass fabric with the weight from 120 to 1400 g/sq.m. with the width up to 3.2 m with different types of finish improving their properties. One of the considerable sectors of silicone fiberglass fabric application — production of welding blankets, fire protective blankets, screens and curtains, casing as a thermal barrier for protection of the equipment, high temperature insulation of furnaces, turbines, screens for protection from molten metal splashes, sparks, thermal insulation.
It can be coated on 7628,3732,3784 and any other kinds of the basic fiberglass fabric.The function is as below,check the applications
Our Silicone/Glass Fabrics have a woven fiberglass cloth substrate which has been coated on one or both sides with silicone. These fabrics exhibit the strength and tear resistance of fiberglass, as well as, provide excellent release properties.
|
Total weight |
530 g/m2 |
|
Thickness |
0.4 mm |
|
Color |
Red |
|
Fire resistance |
Yes |
|
Working temperature |
-500C to +2600C |
|
Coating |
Silicone Coated On Both Sides. |
|
Standard widths |
1000mm, 1270mm, 1550mm,3200mm(MAX) |
Typical Applications:
• Welding & Burning Safety Blankets & Curtains
• Furnace High Temperature Insulation
• Flange & Valve Covers
• Furnace Curtains
• High Temperature Composites
• Thermocouple Insulation
• Fuel line insulation
• Stress Relieving Insulation
| Style | SR3732 | ||
| 2 | Weave | 4 HS Satin | |
| 3 | Yarn | Warp | EC9 136 1×2 |
| (tex) | Weft | EC9 136 1×2 | |
| 4 | Width | 101.6 cm | |
| 152.4 cm | |||
| 5 | Fabric Thickness | 0.4 mm | |
| 6 | Coating | Two Sides – Silicone Rubber (100 g) | |
| 7 | Coating Thickness | 0.1 mm | |
| 8 | Overall Thickness | 0.4 mm | |
| 9 | Overall Weight | 530 g/m2 | |
| 10 | Thread Count | Warp | 18 per cm |
| Weft | 13 per cm | ||
| 11 | Tensile Strength Min. | Warp | 8000 N/5cm |
| Weft | 6000 N/5cm | ||
| 12 | Temperature | Max. 260oC | |

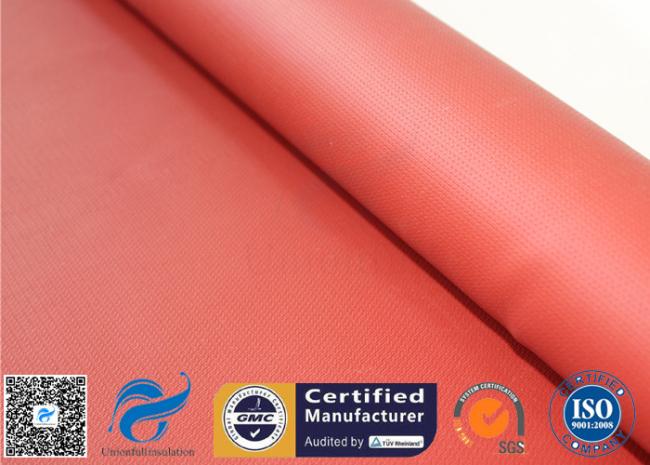

Picture:
