Flex Resistance Blanket Silicone Impregnated Fiberglass Cloth Twill Woven
Flex Resistance Blanket Silicone Coated Impregnated Fiberglass Twill Woven
Silicone coated fabrics are the perfect choice for protecting a variety of hoses, lines, wires, cables and equipment assemblies such as electronic enclosures, valves, robotic heads, festoon cables, EAF cables, etc., from exposure to high temperature, molten metal splash, slag, welding splatter, UV light, abrasion and contamination.
They are constructed from a fiberglass base cloth and coated both sides with a specially compounded iron oxide red silicone rubber. They features excellent electrical insulation, heat insulation and chemical corrosion resistance. Also available in grey.
|
Name |
Silicone Rubber Coated Fiberglass Fabric |
|
Material |
C-glass or E-glass Yarn |
|
Type of Weave |
Satin ( Cross Twill ) Weave |
|
Warp Density |
20 Ends/CM |
|
Filling Density |
11 Ends/CM |
|
Width |
100CM, 120CM, 150CM, 180CM, 200CM |
|
Thickness |
0.2MM, 0.4MM, 0.8MM, 1.0MM, 1.6MM |
|
Mass Per Unit Area |
500-2000GSM |
|
Roll Length |
25M,50M, 100M, Diffrent length can be customized. |
These fabrics offer high-temperature and heat resistance, along with the ability to shed welding splatter and molten steel & aluminum splash.
The typical applications are as welding curtains or blankets, or high-temperature protection blankets for engine exhaust components or industrial equipment, steam and gas turbines.
Benefits:
Excellent release properties up to 500 °F (260 °C)
Good chemical, abrasion and flex resistance
Outstanding dielectric properties
Does not exhibit the low friction surface or self lubricating properties of PTFE coated fabrics

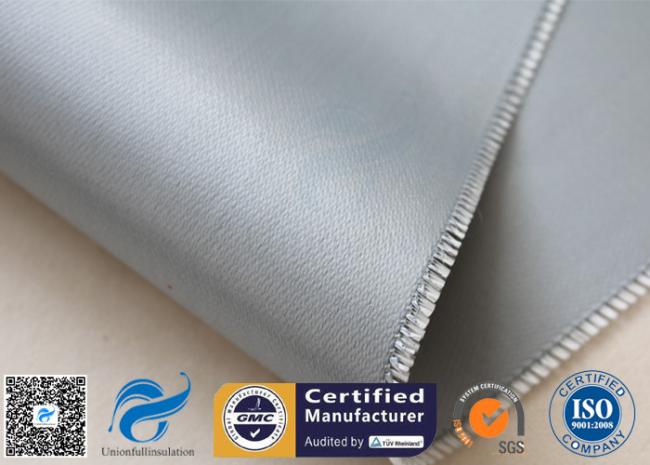

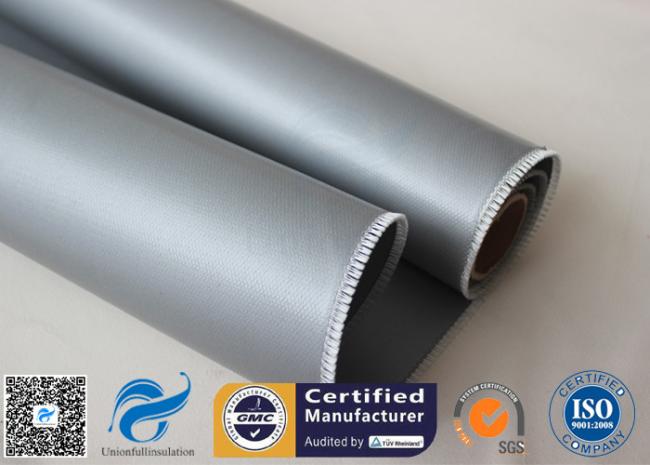

Picture:
