2PCS Coppery Reusable Non Stick PTFE Silicone Oven Liner BBQ Grill Mat
2PCS Coppery Reusable Non Stick PTFE BBQ Grill Mat / Oven Liner
JT8350TC-20-4033 is BBQ grilling accessories--BBQ grill mat. It's made of fiber glass cloth and coated with a food standard ptfe coating. This oven liner can be used in temperature of -70℃ to 260℃. It also can be used in microwave and oven.
Mass per unit of the material PTFE coated fiberglass cloth is 350g/m2. Thickness of this grill mat is from 0.08mm to 0.2mm, but common two thickness is 0.12mm and 0.2mm. One set of two sizes 40x33cm, 33.5x23.5cm is very common used size in America and Europe. Weight of 1 set is totally 74g, very light weight!
This light weight oven liner is very convenient to use. It's non stick and easy clean(washable). Don't waste your time.
Customized order is acceptable for Unionfull! If you need customized color box or other packaging for this BBQ grill mat, please contact Unionfull for more information.
Data Sheet
| Item | BBQ Grill Mat/Oven Liner |
| Materials | Fiberglass fabric, food grade PTFE coating |
| Color | Coppery |
| Size | 2pcs one set: 40x33cm, 33.5x23.5cm |
| Thickness | 0.12mm, 0.2mm |
| Weight | 74g one set |
| Working Temperature | -70℃--260℃ |
| Packaging | One set in PE bag or Color Box |
Features
- Light weight. Only 74g per set.
- Non stick. Very smooth PTFE surface
- Easy to clean
- Eco-friendly, fiberglass and PTFE, very environmental materials
- FDA quanlity. Can be used from -70℃ to 260℃
- Safe for freezer and microwave, oven
- Reusable. Can be used for baking 3000 times or more.
glass fibre cloth, fiber glass supply, duct insulation
PTFE Fiberglass Cloth

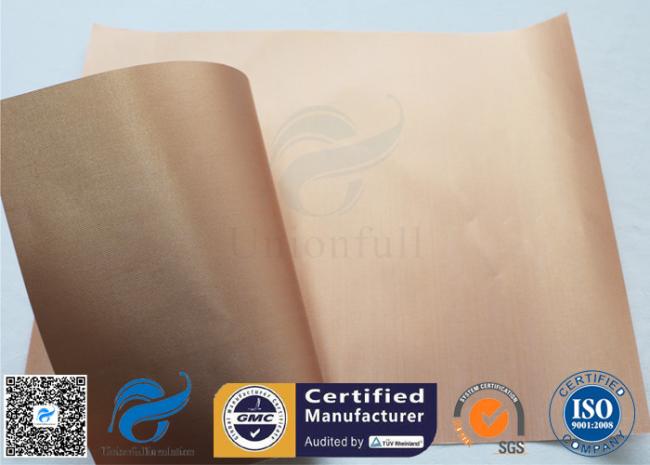

BBQ grill mat is made of 350g/m2 copper color PTFE coated fiber glass cloth. PTFE coated glass fiber cloth has excellent non-stick properties. Standard grade contains an excellent balance of substrate weave, finish and coating.
PTFE Coated Fiberglass Fabrics offer outstanding non-stick performance, high temperature, chemica resistance as well as excellent electrical properties. So they can be used in a wide range of industrial applications. It also has excellent dimensional stability.
| Name | PTFE Coated Fiber Glass Fabric |
| Weave | Plain Woven |
| Color | Copper, brown, black |
| Mass Per Unit | 350g/m2(200g/m2 to 1200g/m2) |
| Thickness | 0.08mm to1mm, for baking mat 0.08mm to 0.2mm |
| Width | 100cm, 127cm, 155cm |
Features
- Chemical Resistance -Fiberglass textile fabrics will not rot, mildew or deteriorate. They resist most acids with the exceptions of hydrofluoric acid and phosphoric acid.
- High Tensile Strength -Fiberglass yarn has a high strength-to-weight ratio. Fiberglass yarn is twice as strong as steel wire.
- High Thermal Endurance -Fiberglass cannot burn and is basically unaffected by curing temperatures used industrial processing. Fiberglass will retain approximately 50 percent of its strength at 700°F and as much as 25 percent at 1000°F.
Application of this materials
- For printing, drying screen-printing machines.
- Adhesive interlining belts.
- Heat sealers, frozen food transportation, defrosting belt and baking belt.
- Packing, side band sealing.
- Thermal insulation, conveyor belts
- Gaskets, seals,
- Bearing liners, and
- Non stick surfaces for paints
Picture:
