Chemical Resistant Grey Silicone Coated Fiberglass Fabric Electric Insulation
Chemical Resistant 3732 Grey Silicone Coated Fiber Glass Fabric
This silicone coated fiber glass fabric is 3732 fiberglass base cloth with 80g/m2 grey silicone coating each side. The base fiber glass cloth can used below 550℃ continuously. Silicone coating can be used below 260℃.
Woven fiber glass cloth are very common used for marine and composite construction and repair. This light weight but high strength cloth provide smooth finish and are excellent for producing a waterproofing layer or other treatment when is combined with the appropriate resin. Heavier cloths will provide greater strength and overall rigidity. Fiberglass cloths of Unionfull are compatible for use with polyester resins, epoxy resins or vinyl ester resin.
Base on silicone coating's properties, major application of silicone coated fiber glass cloth, rubber coated fabric are fire/welding blanket, fire curtains, fabric expansion joints, thermal insulation, removable insulation blankets, food handling operations and release sheet material.
Yarn type of e-glass 3732 fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight is 510g/m2. 430g/m2+40g/m2 per side.
Common widths Unionfull produce are 100cm, 127cm and 155cm.
| Number | Thread Count | Thickness | Weight | Width |
| 3732 |
20 Ends/CM 11 Ends/CM |
0.4mm | 430g/m2 | 0.9m-4.2m |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Glass Fiber Yarn |
| Weave | Satin Weave |
| Warp Density | 20 Ends/CM |
| Weft Density | 11 Ends/CM |
| Mass Per Unit | 590g/m2(430+80+80) |
| Thickness | 0.5mm |
| Width | 155cm |
| Temperature |
Cloth below 550℃ |
Properties
- Non-stick
- Chemical Resistant
- Excellent release features
- High strength
- Great Tear resistance
- Electric Insulation
- Working temperature range from -50℃ to +260℃
Application
- Welding blanket for welding spark/splash shield
- Conveyor belt
- Thermal insulation fabric
- High temperature fabric cloth
- Fabric duct and expansion joints
- Chemical corrosion resistant packing materials
- Electric insulation/fireproof covers for electric generator
- Aerospace, marine, chemical industry, automotive, construction

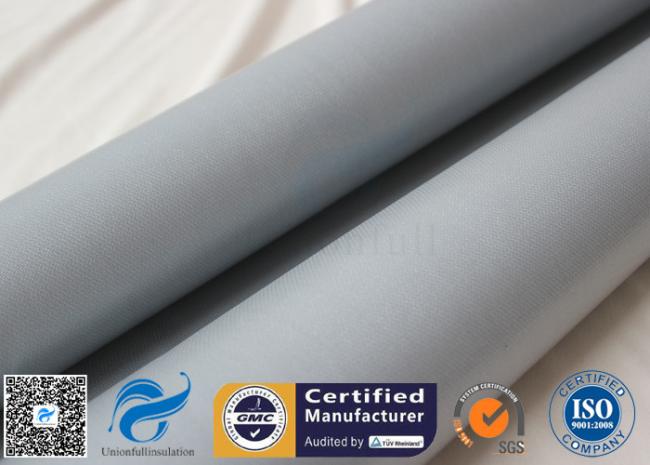

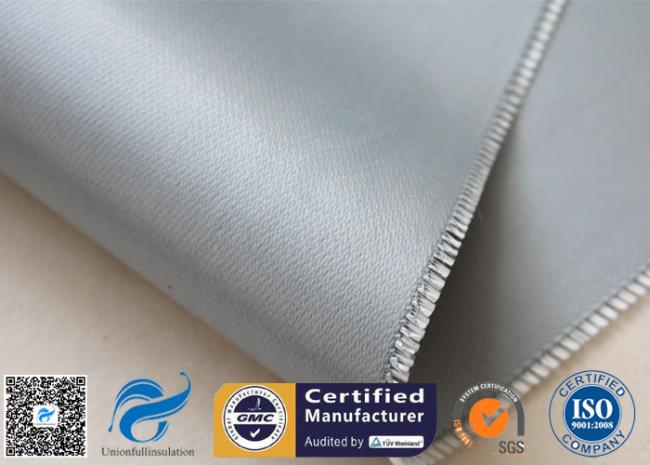

Picture:
About Fiber Glass
Extremely soft weave allows lay-up into the tightest parts. Can be used in many high performance composite parts where good drapability is needed.
Currently available in 39", 50" and 61" width.
E-glass fiberglass fabrics are most common used. It is high strength and fireproofing. S-Glass will has the same working qualities as a standard E-glass. But you will get an approximate 25-30% increase in breaking strength. Used in applications where the most possible strength is required while keeping weight to a minimum.
