3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain
3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain
UPPE-8732D30 is woven 3732 fiberglass cloth substrate which has been coated on both two sides with a specially compounded grey polyurethane coating. Weave type of base cloth is satin(cross twill) weave. When coated with 40g/m2 grey PU coating each side, totally weight per unit is 510gsm, and thickness will be 0.5mm.
PU coated fiberglass cloth has a special property: usually common coated fiberglass fabric like silicone/PVC/PTFE coated fabric should be used below 260℃. While PU coating is able to resisting instantaneous temperature up to 1100℃. So it is very suitable to used for welding sparks/splash shield products, also great for fire blanket/curtain. Coated fiberglass fabric also have some special properties like chemical corrosion resistance, electrical insulation, waterproof, high strength, not itchy when touch, different colors.
| Item |
3732 PU Coated Fiberglass Fabric |
| Total weight | 510 g/m2 |
| Thickness | 0.5 mm |
| Color | Grey(red, black, orange and yellow or others) |
| Temperature |
Coating: -50℃ to +260℃ Instantaneously up to 1100℃ |
| Coating | Polyurethane Coating, 40g/m2 on both side |
| Common Width | 100cm, 127cm, 150cm |
Properties:
- 40g/m2 Polyurethane coating on both sides
- Pu coated fabric can withstand 1100℃ instantaneously
- Fireproof, resist high temperature below 260℃
- Chemical resistance
- Abrasion corrosion
- Waterproofing, washable
Application:
- Welding Spatter Protection
- Fire Curtain, Fire Doors
- Expansion joints
- Transmitter insulation covers
- Flange insulation covers
- Thermal Insulation Jacket/Exhaust Blanket
- Fire/Smoke Control Systems
Data Sheet Of Base Cloth 3732:
| Item No. | 3732 Fiberglass Cloth | ||
| Weave | Satin Weave(Cross Twill) | ||
| Yarn Tex | Warp | EC9 33 2X2 | ECG 150 2/2 |
| Weft | EC9 33 2X2 | ECG 150 2/2 | |
| Weight | 430 g/m | 12.7 oz/yd2 | |
| Thickness | 0.43 mm | 0.017 inch | |
| Thread Count | Warp | 18 per cm | 45 per inch |
| Weft | 13 per cm | 33 per inch | |
|
Tensile Strength |
Warp | 6000 N/5cm | 666 lbs/inch |
| Weft | 4500 N/5cm | 500 lbs/inch | |
| Working Temperature |
Below 550℃ |
||

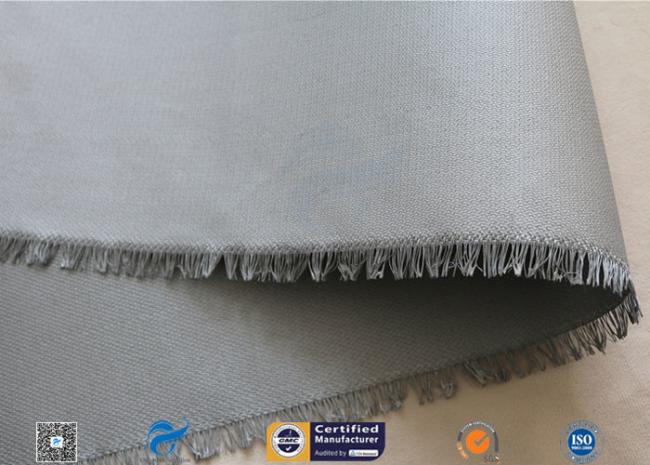

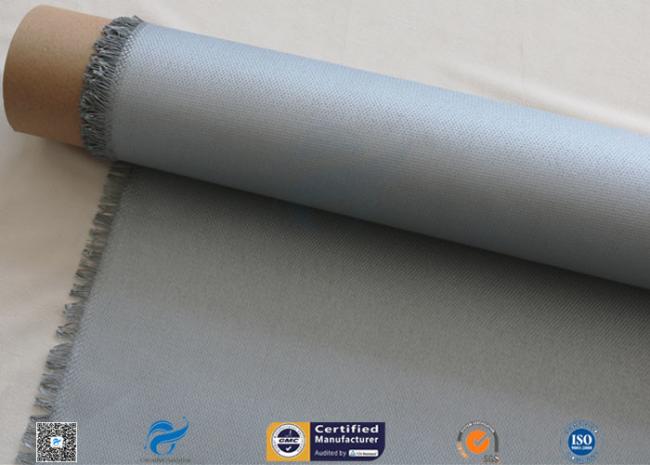

Picture:
