3732 Rubber Silicone Coated Fiberglass Fabric For Fire Blanket ISO9001:2008

Price Negotiable
Price: $2.85-3.40/ Square Meter
MOQ: 500 Meters
Delivery Time: 15 Working Days After Receiving Payment
Brand: Unionfull
Product Description

3732 Silicone Rubber Coated Fiberglass Fabric For Fire Blanket

Silicone coated fiberglass fabric is made from basic glass fiber cloth and then coated with 80g/m2 grey silicone coating on two sides. The basic fiber glass fabric can withstand high temperature below 550℃. And the rubber coating can stand temperature below 260 degree Celsius.

Silicone coated fiberglass fabric is a very flexible, tear resistant and fireproof fabric. It is made from e-glass woven fiber glass fabric, with characteristic such as stability, durability and high tensile strength. Base on silicone coating's properties, this coated fiber glass cloth are always used for fire blanket, fabric expansion joints or fabric connector, jacketed vessel/strainer/pump/pipeline thermal insulation covers and fire fighting equipments application.

Yarn type of this silicone coated  fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight is 510g/m2. 430g/m2+40g/m2 coating on both sides.
100cm, 127cm, 155cm is very common and convenient width we produce. (more economical price and less lead time)


Technical Data Of 3732 Fabric

StyleWeaveThread CountThicknessWeightWidth
3732Satin

20 Ends/CM

11 Ends/CM

0.4mm430g/m21.55m




Specification Of UPSE-8732D80:

ItemSilicone Coated Fiberglass Fabric
MaterialE-glass Fiber Glass
WeaveSatin Weave
Warp Density20 Ends/CM
Weft Density11 Ends/CM
Mass Per Unit590g/m2(430+80+80)
Thickness0.5mm
Width155cm
Working Temperature

Silicone Coating below 260℃


Properties:



  • Anti chemical agent
  • Excellent release features
  • Durable, abrasion resistance
  • Tear resistance
  • High tensile strength.
  • Electric insulation
  • Service temperature from -50 degree to 260 degree.


Application:



  1. Cold protection Covers
  2. Fire doors & fire curtains
  3. Cable cover, pump thermal insulation covers
  4. Fire safety cloth
  5. Anti-corrosion sector
  6. Hot air blower

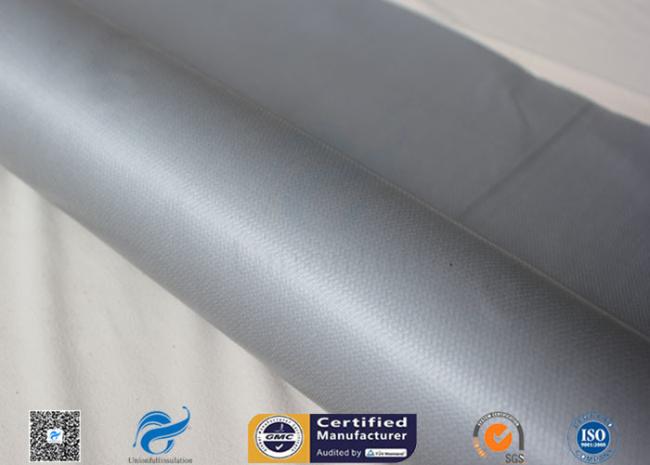

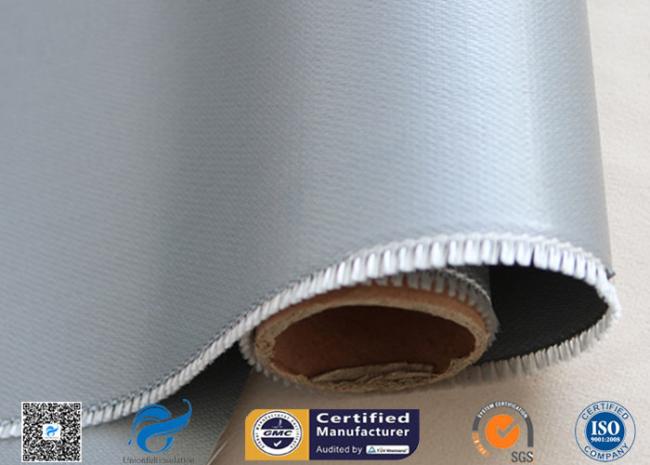

 Picture:
