Electrical Insulation Red Silicone Coated Fiberglass Fabric Cloth 530 gsm
530gsm Electrical Insulation Red Silicone Coated Fiberglass Fabric Cloth
This red silicone coated fiber glass fabric is produced of glass fiber cloth and then coated with 100g/m2 red silicone/rubber coating on one side. The basic fiberglass fabric can withstand a high temperature below 550℃. But the rubber/silicone coating is capable of withstand temperature below 260 degree Celsius.
Silicone coated fiberglass fabric is a very flexible, tear resistant and heat resistant material. It is made from fireproof e-glass fiberglass cloth with features, such as structure stability, durability and high tensile strength. And because of the silicone coating's properties, this coated fiberglass cloth are always used to produce industrial thermal insulation products such as fire blankets, fire curtains, expansion joints, jacketed vessel/pipeline/valve thermal insulation covers and fire fighting equipments.
Yarn type of this silicone coated fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight of this 3732 fiberglass fabric is 530g/m2. 430g/m2+100g/m2 coating on one sides. 100cm, 127cm, 155cm is very common and convenient width we produce. (more economical price and less lead time)
| Style | Weave | Thread Count | Thickness | Weight | Width |
| 3732 | Satin |
20 Ends/CM 11 Ends/CM |
0.4mm | 430g/m2 | 1.55m |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Fiber Glass |
| Weave | Satin Weave |
| Warp Density | 20 Ends/CM |
| Weft Density | 11 Ends/CM |
| Mass Per Unit | 530g/m2(430+100) |
| Thickness | 0.5mm |
| Width | 100cm, 127cm, 155cm |
| Working Temperature |
Silicone Coating below 260℃ |
Features:
- Good temperature resistance (-70degree to 280degree).
- Soft and smooth surface, and sewable.
- Good performance of corrosion resistance, oilproof and waterproof.
- Be able to resist heat and climate ageing.
- Thermal insulation, permittivity 3 to 3.2, breakdown voltage 20 to 50 kv/mm.
Application:
- Air duct
- Fabric expansion joints
- Fireproof curtain & blanket
- Welding blanket & habitat
- Removable insulation cover & blanket
- Other fire-control systems

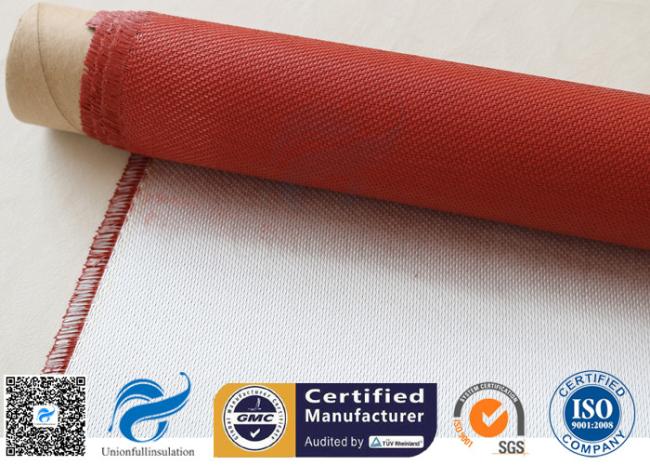

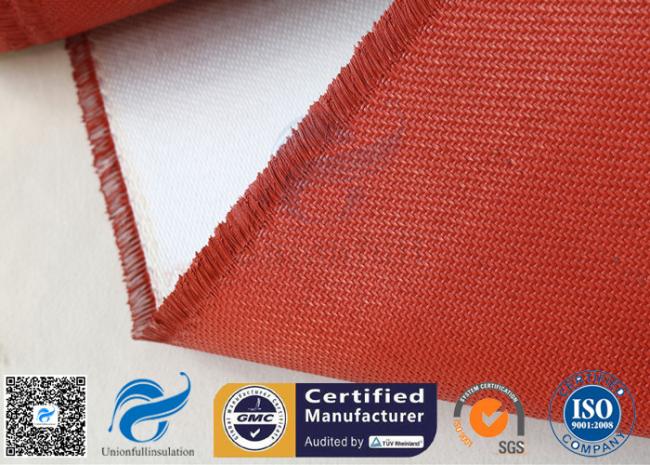

Picture:
Other Information:
Unionfulll's silicone coated fiber glass fabric takes high temperature, high strength and corrosion resistance fiberglass fabric as basic fabric, and then coated by silicone rubber after the special process.
Silicone fiberglass fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.
Unionfull customizes single side and double sides silicone fiberglass fabric with different coating weight and different colors. We always focus on providing good silicone fabric for every customer.
