0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection
3732 0.5mm Aluminium Foil/Silicone Coated Fibreglass Fabric For Heat Protection
JT8430AF consists of a woven fiberglass fabric 3732(430g/m2) that has been laminated with a layer of aluminium foil by a high temperature adhersive. Then coated grey silicone on another side. So the total mass per unit area is 520g/m2. Thickness can be 0.5mm.
This base fabric 3732 performs well under a temperature ranging from -100° F to 1022° F. And the aliminium foil should be used below 1220°F/660℃. However, it does need time for aluminium foil to bear enough heat to melt, so in fact it can withstand higher temperature for a short time. The adhersive will melt above 300℃. For another side silicone coating, it is very close. Coating can be used below 260℃.
The foiled fiberglass cloth offers superior performance in a wide range of temperatures because of its high quality raw materials and advanced production techniques. It keeps wonderful flexibility without delamination phenomenon at temperatures between -40℃ and 550℃. Tested according to ASTM E96 standard, this reflective material offers water vapor transmission rate up to 5.75 ng/N.s, ensuring its high water vapor resistance.
This one side aluminium foil one sidee silicone coated fabric usually used for thermal insulating materials for heating pipelines, sound insulation materials in construction and protective layer of super glass wool with excellent functions of fire resistant, abrasion corrosion resistant, thermal insulation and sound absorbability. It can also be used as packing materials for the export equipment with the functions of waterproof, mildew proof, fire - existence.
- Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
- Common Width: 101.6cm/121.9cm/152.4cm
- Roll Length: 50-100m/as customers' requirements
| Product Model | JT8430AFS-50-100 | ||
| Material | Aluminium Foil/Silicone Fiberglass Fabric | ||
| Weave | Satin Weave | ||
| Yarn Tex | Warp | EC9 33 2X2 | |
| Weft | EC9 33 2X2 | ||
| Total Weight | 520 g/m2 | ||
| Thickness | 0.5mm | ||
| Thickness Of Aluminium Foil | 7micron/18micron/25micron | ||
|
Tensile Strength |
Warp | 6000 N/5cm | |
| Weft | 4500 N/5cm | ||
| Width | 100cm, 127cm | ||
| Service Temperature |
Fibre Glass Cloth: 550℃ Adhersive: 300℃ |
||
Features:
- Heat Reflective
- Abrasion Resistant
- Waterproof
- High Tensile Strength
- Anti Chemical Corrosion
- Low Moisture Absorption
- Electrical Insulation
Application
- Hot Work Protective Wear
- Protection from Weather Elements
- Gas and Liquid Euipment Coverings
- Covering for Removable Thermal Insulations
- Fabricated Curtains/Blankets
- Automotive Engine Heat Containment
- Vertical Spark Protection
- Construction
- Chemical Processing
- Petroleum Refineries
- Automotive Industry
- Maritime

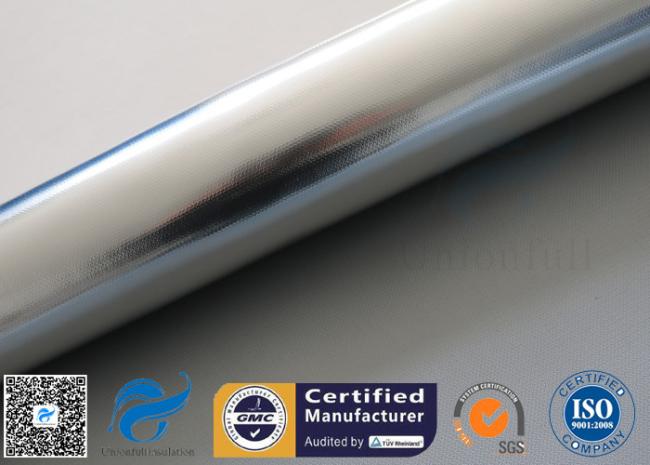

Picture:
