0.45mm 470gsm Fiberglass Fabric Fireproof Insulation Material With Silicone Coated
0.45mm 470gsm Fire Resistant Red Silicone Coated Fiberglass Fabric
This 0.45mm silicone coated fiberglass cloth is made from fiberglass fabric which has coated with 40g/m2 red silicone/rubber on one side. The fiberglass fabric can resist a high temperature below 550℃. And the rubber/silicone coating is able to withstand 260 degree Celsius.
Silicone coated fiberglass fabric is a flexible, durable and fire resistant fabric. It is made from fireproof e-glass fiber glass woven fabric, with advantages such as structure stability, tear resistance and high strength. And because of the silicone coating, this silicone coated fiberglass cloth are widely used to produce industrial protection items such as fire blankets, expansion jointss, pump/pipeline/valve thermal insulation jacket and fire protective products.
Yarn type of this silicone coated fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight of this 3732 fiberglass fabric is 470g/m2, 430g/m2 fabric and 40g/m2 red silicone coating on one side. Common widths are 100cm, 127cm, 155cm.
| Style | Weave | Thread Count | Thickness | Weight | Width |
| 3732 | Satin |
20 Ends/CM 11 Ends/CM |
0.4mm | 430g/m2 | 1.55m |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Fiber Glass |
| Coating | Red Silicone, One side |
| Weave | Satin Weave |
| Warp Density | 20 Ends/CM |
| Weft Density | 11 Ends/CM |
| Mass Per Unit | 470g/m2(430+40) |
| Thickness | 0.45mm |
| Width | 100cm |
| Working Temperature |
Silicone Coating below 260℃ |
Features:
- Anti chemical agent
- Corrosion resistance
- Durable, abrasion resistance
- Tear resistance, high strength.
- Electric insulation
- Service temperature from -50 degree to 260 degree Celsius.
Application:
- Cold protection covers
- Fire doors & fire curtains
- Cable cover, pump thermal insulation jackets
- Fire safety clothing, protective products
- Anti-corrosion sector
- Expansion joint
- Hot air blower

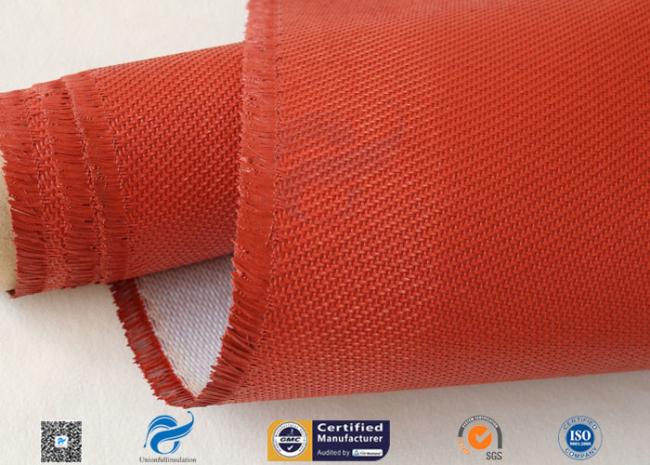

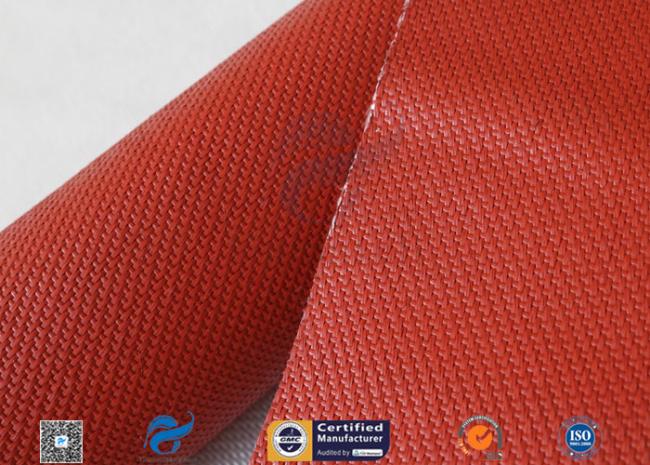

Picture:
