Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint
0.5mm 510g Grey Silicone Coated Fiberglass Fabric For Expansion Joint
3732 430g/m2 fiberglass fabric is a very common used fabric because of its suitable weight and thickness. When coat with grey silicone on both sides, the coated fiberglass fabric is 510g/m2 and 0.5mm. Fiberglass is a light-weight material which is fire resistant, abrasion resistant, chemical resistant, waterproof and anti UV. Silicone coating performs especially great on electric insulation so it is also used to produce removable thermal insualtion which is for pump, valve and power generators.
The fiberglass cloth can resist 550℃ continuously. Silicone coating can be used below 260℃. Base on its special coating properties and fabric features, main application of silicone coated fiber glass cloth are welding blanket/curtains, gasketing, fabric expansion joints, shrink tunnel curtains and heat insulation covers.
| Model No. | Thread Count | Yarn Type | Thickness | Weight | Width |
| 3732 |
20 Ends/CM 11 Ends/CM |
G37 1/0 0.7Z G37 1/0 0.7Z |
0.4mm | 430g/m2 | 0.9m-4.2m |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Glass Fiber Yarn |
| Weave | Satin Weave |
| Warp Count | 20 Ends/CM |
| Weft Count | 11 Ends/CM |
| Weight | 510GSM |
| Thickness | 0.5mm |
| Width | 127cm |
| Servise Temperature | Coating below 260℃ |
Features:
- Anti acid and strong alkali
- Electrical insulation
- High strength, durable
- High dielectric strength
- Working temperature range from -50℃ to +260℃
Application:
- Welding blanket, metal splatter protection
- For conveyor belt, fabric duct and expansion joints
- Electrical insulation covers for power generators
- Used in other fields: aerospace, marine, chemical industry, power plant, automotive, construction, piping and sealing

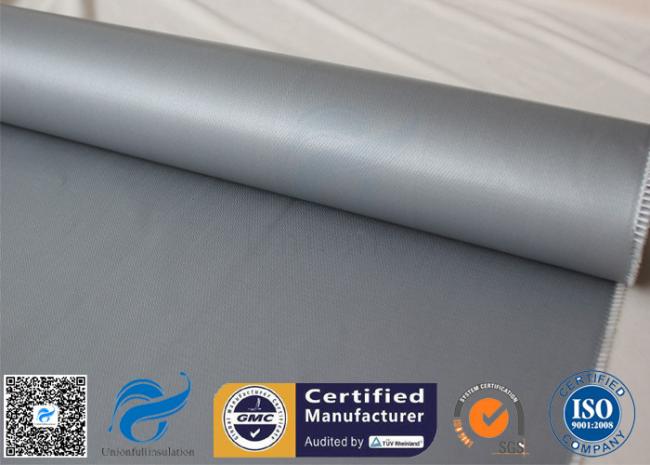

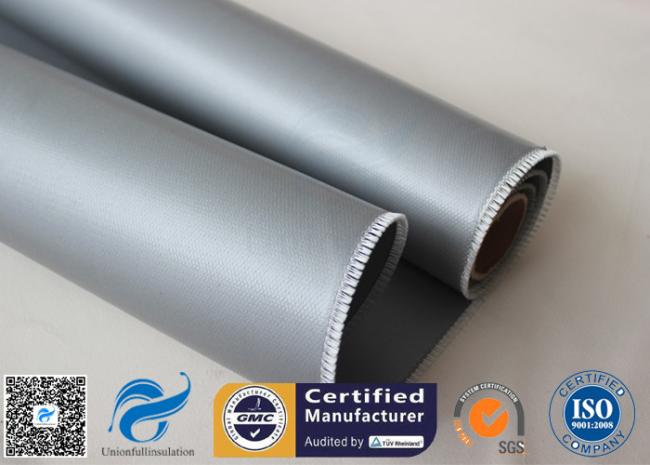

Picture:
