300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield
300g Grey Silicone Coated Fiberglass Fabric For Welding Splash Shield
Silicone Coated Fiberglass Fabric is made of woven fiberglass basic cloth coated with grey silicone on both two sides. Fiberglass fabric is a high strength but light weight fabric which is widely used as industrical heat insulation materials. For this 300gsm silicone coated fiberglass fabric, basic cloth is weighed at 200g/m2 and it is 0.2mm thick. When coated with 50g/m2 silicone/rubber on both two sides. The basic fiberglass cloth can be used below 550℃. And the working temperature of silicone coating is below 260℃.
Silicone coated fiberglass fabric is fire resistant, high strength and electrical insulation. Based on the properties of both fiberglass basic and silicone coating, this silicone cloth is widely used for fabric expansion joints or connector, thermal insualtion/electrical insulation jackets for electric generator, anti corrosion cover for pipe, fire blanket and fire curtains.
| Style | Weave | Thread Count | Thickness | Weight | Width |
| UPSE-8628D50 | Plain |
17.3 Ends/CM 13 Ends/CM |
0.2mm | 200g/m2 | 155cm |
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Fiber Glass |
| Weave | Plain |
| Warp Density | 17.3 Ends/CM |
| Weft Density | 13 Ends/CM |
| Mass Per Unit | 300g/m2(200+50+50) |
| Thickness | 0.3mm |
| Width | 155cm |
| Working Temperature |
Silicone Coating below 260℃ |
Properties:
- Fire resistance
- Abrasion resistance
- Chemical corrosion resistance
- Electric insulation
- High strength, Durablity
- -50 degree to 260 degree C working temperature
Application:
- Cold protection/thermal insulation covers
- Fire doors, fire curtains / blanket
- Fabric expansion joints
- Fabric connector
- Electrical insulation shield for generator, electrical euipment

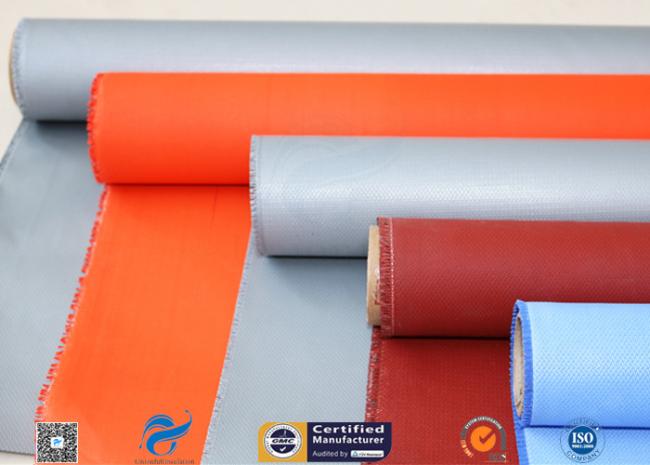

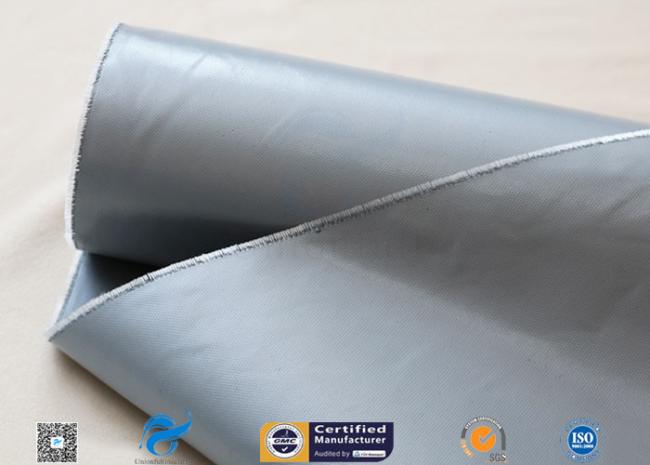

Picture:
