Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric
0.3mm Grey Silicone Coated Fiberglass Fabric For Engine Thermal Insulation
This 0.3mm silicone coated fiberglass fabric is made of 200gsm 0.2mm woven fiber glass cloth coated with grey silicone on two sides. Fiberglass fabric is a tear resistant but light weight fabric compared with other materials for industrical heat insulation. Coating of this fiberglass fabric is 50g/m2 per side. The basic fiberglass cloth is able to withstand 550℃. And the working temperature of silicone coating is below 260℃.
Silicone fiber glass cloth is a heat resistant, durable and electrical insulation material. Based on its special features of fiberglass cloth and silicone coating, silicone coated fiberglass cloth is always used for welding/fire blanket, fabric expansion joints, removable thermal insualtion jackets for generator and valve, chemical corrosion resistant cover for pipeline.
| Item | Silicone Coated Fiberglass Fabric |
| Material | Fiber Glass |
| Weave | Plain Weave |
| Warp Density | 17.3 Ends/CM |
| Weft Density | 13 Ends/CM |
| Mass Per Unit | 300gsm |
| Thickness | 0.3mm |
| Width | 100cm |
| Working Temperature |
Silicone Coating below 260℃ |
Properties:
- Fireproof
- Durable, abrasion resistant
- Anti acid, alkali, corrosion resistance
- Electric insulation
- Below 260 degree C working temperature
Application:
- Removable thermal insulation jacket
- Fire safety doors, fire curtains
- Fabric expansion connector
- Electrical insulation exhaust blanket
- Enginer thermal insulation

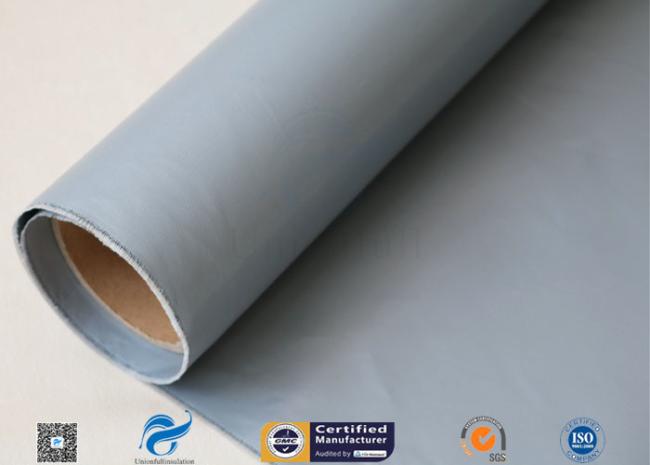

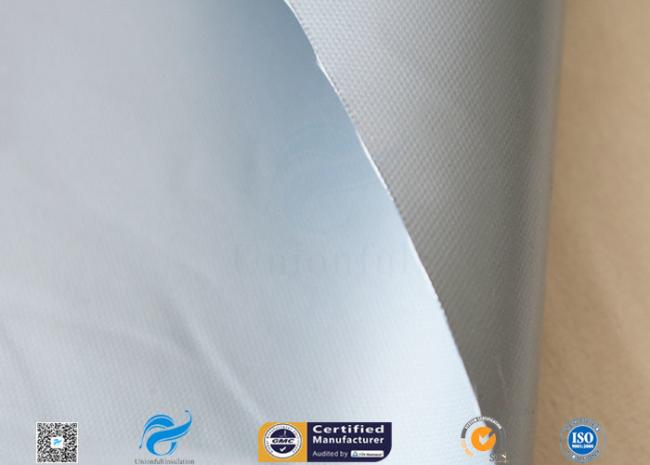

Picture:
