High Temperature Resistance E Glass Needle Mat High Silica 1100℃ Fire Resistance
High Temperature Resistance E Glass Needle Mat High Silica 1100℃ Fire Resistance
Fiberglass high silica needle mat is a high temperature resistance fiberglass material made of alumina borosilicate glass fibers filament in 9µm diameters. Then these filaments will be cut into 3cm to 10cm length each and they will be needled by thousands of needles to form a fiber glass mat but without any bonding agents.
High silica needle mat starts when and where common e-glass fiberglass needle mats meet their limits. Silica needle mat is designed to be applied in high temperature surroundings of 1100℃ continuous heat. And it can withstand temperature peaks up to 1300℃.
Silica needle mat has low thermal conductivity and high temperature resistance so that it is excellent high temperature insulaton material. It can be used over long periods in high temperature work place without weight loss and melting. Silica needle mat can resist a temperatures of 1100ºC and even up to 1300ºC for a short period.
Silica needle mat has high porosity, enhanced tensile strength, sound insulation and chemical resistance features. What's more, fiberglass mateirals are eco-friendly. It can be recyclable after using.
Data Sheet:
|
Thermal Conductivity (K = Btu x in / hr / sq.ft. x ft. / deg F)
|
|
| 500 oF (260 oC) |
0.44 |
| 1000 oF (538 oC) |
0.79 |
| 1500 oF (816 oC) |
1.38 |
| 1800 oF (982 oC) |
1.91 |
|
Temperature Limit
|
|
| Continuous Use | 1800 oF (982 oC) |
| Intermittent | 2300 oF (1260 oC) |
| Melting Point | 3100 oF (1704 oC) |
|
Tensile Strength Of Single Filament (psi)
|
|
| -310 oF (-190 oC) |
1,200,000 |
| 700 oF (371 oC) |
545,000 |
| 1000 oF (538 oC) |
350,000 |
| Average filament diam-eter (μm) | 6-9 |
| Color | White |
| Thickness | 1/4 inch to 1 inch (6mm to 25mm) |
| Density (Depending On Thickness) | 9-12.5 lbs/ft3 (144-200 kg/m3) |
Features:
- Sound absorption
- Anti chemical agents, oil resistance
- High air permeability
- Low heat conductivity
- No heat shrink
- Electrical insulation
- Maintain excellent properties after long exposure to temperatures as high as 1000°C, and short-time exposure up to 1300°C
Application
- Muffler for automotive engine
- Industrial high temperature filtration
- As fire resistant wadding materials
- Middle part of thermal insulation jacket
- Fire doors wadding
- Air conditioning ducting, pipe heat insulation warp
- Housing roofing/wall thermal insulation layer

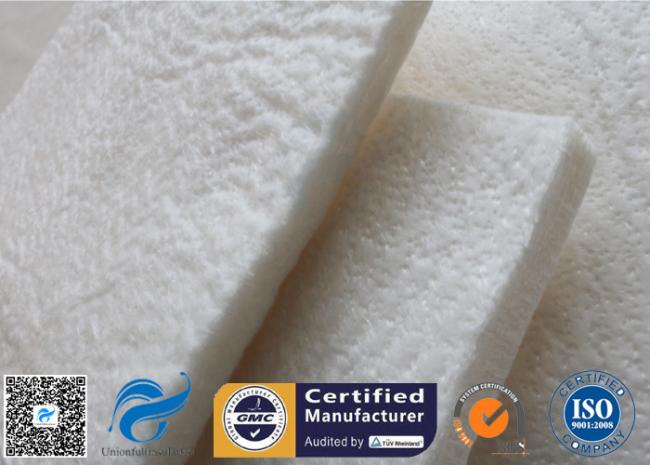

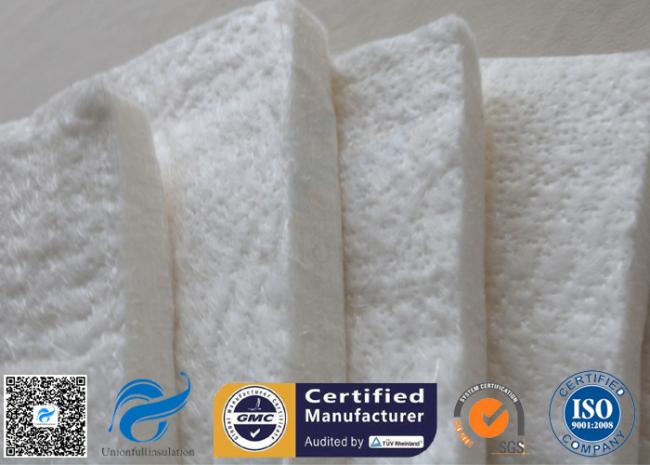

Picture:
