0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Plain Weave Heat Insulation Silicone Coated Fiberglass Fabric

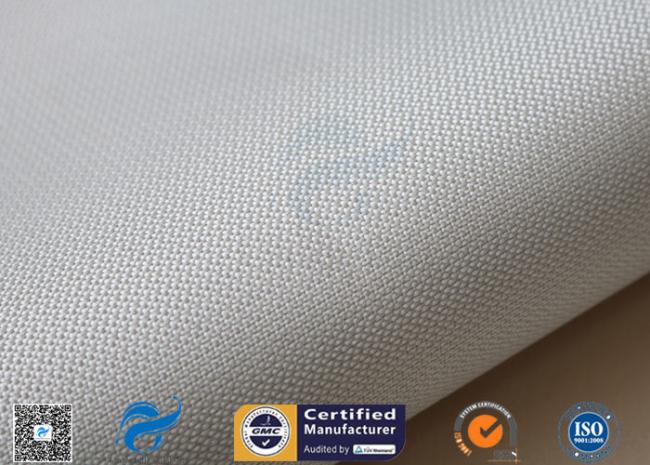

Basic fabric is 430g/m2 0.43mm e-glass woven fiberglss cloth in satin weave. Its single side is coated with 100gsm grey silicone. Fiberglass fabric is tear resistant and fire resistant materials. The silicone coating improved its abrasion resistance and electrical insulation properties.
The basic fiberglass cloth is able to withstand 550℃. Silicone coating can be used from -50℃ to 260℃. This fabric is used to produce removable thermal insulation blanket, fire blanket, curtains and fabric expansion joints.
Fiberglass Fabric:
Thickness: 0.2~3 mm
Width: 1000~1550 mm
Length: 50m/roll
Coating: 40g,60g,80g,100g,120g,150g,200g etc
Strength: 1600~3700 N/50mm
Flammability: ≤25%
Color: Gray, Red, Blue, Yellow, Orange, Black
Coating Side: 1 or 2
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Fiberglass |
| Weave Type | Satin |
| End(per cm) | 20/11 |
| Mass Per Unit | 530g/m2 (430+100) |
| Thickness | 0.5mm |
| Width | 100cm |
| Temperature |
Silicone Coating below 260℃ Cloth below 550℃ |
Feature:
- Firproof, thermal insulation
- Chemical resistant
- Electrical insulation
- Durable, tear resistant
Application
- Thermal insulation blanket
- Fabric expansion joint
- Fire blanket
- Auto heat insulation
- Fireproof cover
