Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm
Silver Coated Fabric Heat Reflective Aluminium Foil Fibreglass Cloth 480gsm
Silver coated fabric is basic fiberglass fabric laminated with aluminium foil by a special high temperature adhersive. This 0.43mm common used specification, basic cloth is 430gsm satin weave fiber glass cloth. Aluminium foil thickness can be 7U, 18U, 25U and 50U. The total weight per square meter is 480g. Thickness is 0.43mm.
This base fiberglass fabric can withstand temperatures ranging from -100° F to 1022° F. And the aluminiul foil is able to be used below 1220°F. The special adhersive will melt above 300℃.
This reflective silver coated fabric is widely used for thermal insulation materials. It is fire resistant, heat reflective, chemical corrosion resistant.
Data Sheet
| Material | Aluminium Foil Fiberglass Fabric | ||
| Weave | 4H Satin | ||
| Yarn Type | EC9 33 2X2 | ||
| Weight | 480g/m2 | ||
| Thickness | 0.43 mm | ||
| Aluminium Foil | 7micron/18micron/25micron(50 Max) | ||
|
Tensile Strength, N/5cm |
6000/4500 | ||
| Width | 1000MM, 1270MM | ||
| Temperature |
Basic fiberglass cloth: 550℃ Adhersive: 300℃ |
Features
- Heat Reflective
- Waterproof
- Durable, tear resistant
- Anti chemical agents
- Electrical Insulation
Application
- Hot work protection
- Gas, oil pipe warp
- Removable insulation jacket
- Safety protective wear
- Automotive engine heat
- Construction
- Automotive industry

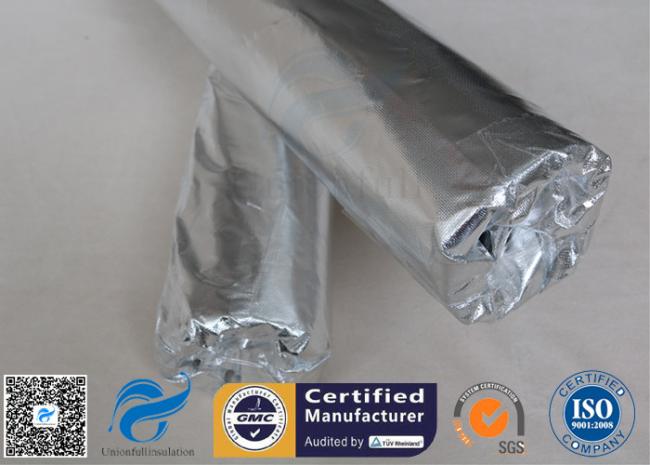

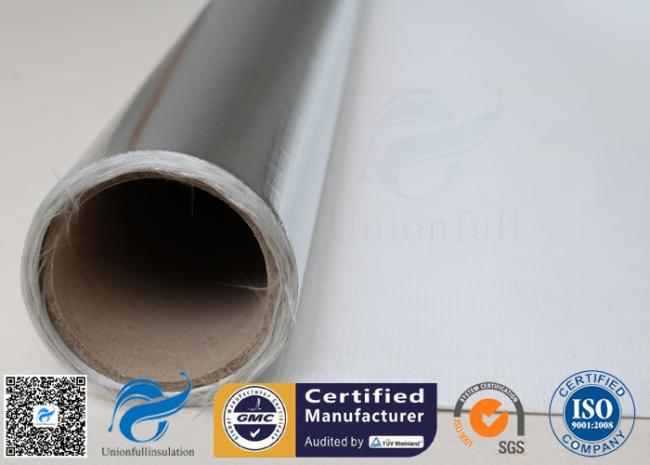

Picture:
