0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth
0.5mm Silver Coated Fabric Silicone Coated / Aluminium Foil Fiberglass Cloth

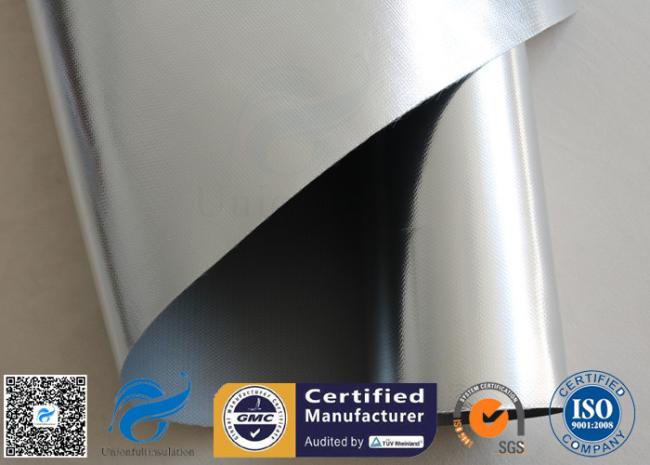

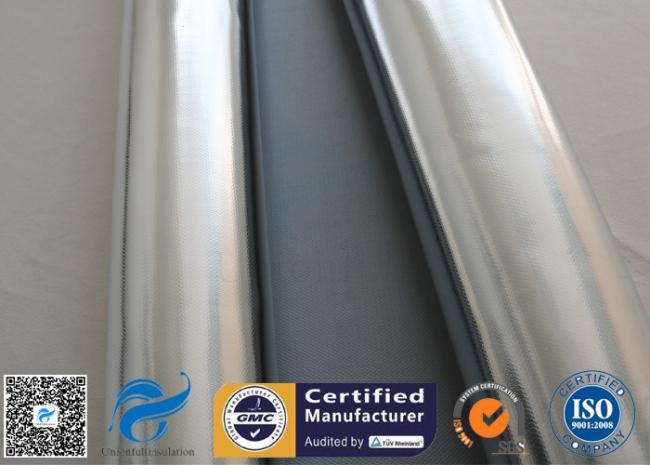

This one side silicone coated one side aluminium foil fiberglass cloth is made of 430g/m2 fiberglass fabric. A layer of aluminium foil is laminated on the fiberglass fabric by high tenperature adhesive. Another side is grey silicone coating. Total weight is 520g/m2 and the thickness is 0.5mm.
The base fiberglass cloth can withstand a temperature below 550℃. Aluminium foil should be used below 660℃. But the high temeperature adhesive will melt above 300℃ continuopusly. For another side silicone coating can be used below 260℃.
This one side aluminium foil one side silicone coated fiberglass fabric is mainly sed for thermal insulation and heat reflective purpose. It is heat resistant, anti chemical agents, corrosion resistant, electrical insulation. Also, it is waterproof to some extent.
Data Sheet
| Material | Aluminium Foil / Silicone Fiberglass Fabric | ||
| Weave | Satin Weave | ||
| Yarn | EC9 33 2X2 / EC9 33 2X2 | ||
| Total Weight | 520 g/m2 | ||
| Thickness | 0.5mm | ||
| Thickness Of Aluminium Foil | 7micron/18micron/25micron, 50U max | ||
|
Tensile Strength |
Warp | 6000 N/5cm | |
| Weft | 4500 N/5cm | ||
| Width | 100cm, 39 inches | ||
| Service Temperature |
Fibreglass Cloth: 550℃ Adhersive, Silicone coating: 260℃ |
||
Features:
- Heat reflective
- Abrasion resistant
- Waterproof
- Durable, Tear resistant
- Chemical resistant
- Anti aging, UV
- Electrical insulation
Application
- Hot work protective clothing
- Gas and liquid euipment coverings
- Removable thermal insulations
- Fire curtains/blankets
- Heat containment
- Construction
- Chemical processing
- Automotive industry
