Basic of this one side silicone, one side aluminium foil fiberglass cloth is 430g/m2 fiberglass fabric. A layer of aluminium foil is laminated on the fiberglass cloth by high temperature adhesive. Another side is grey silicone coating. Total weight of this two side coard fabric 520g/m2 and thickness is 0.5mm.
The basic fiber glass cloth can resist temperature from -50 to 550℃. But the adhesive for aluminium foil should be used below 300℃ continuopusly. For another side silicone coating is able to withstand heat below 260℃.
One side aluminium foil one side silicone coated fiberglass fabric is widely used for heat insulation and heat reflective application. It is tear resistant, fire resistant, anti chemical corrosion, electrical insulation and waterproof to some extent.
Data Sheet
| Material | Aluminium Foil / Silicone Fiberglass Fabric | ||
| Weaving | Satin | ||
| Yarn Type | EC9 33 2X2 / EC9 33 2X2 | ||
| Weight | 520g/m2 | ||
| Thickness | 0.5mm | ||
| Thickness Of Aluminium Foil | 7micron/18micron/25micron, 50U max | ||
Tensile Strength | Warp | 6000 N/5cm | |
| Weft | 4500 N/5cm | ||
| Width | 100cm, 39 inches | ||
| Service Temperature | Fibreglass Cloth: 550℃ Adhersive, Silicone coating: 260℃ | ||
Features:
- Heat reflective
- Fire resistant
- Waterproof
- Durable, high strength
- Chemical corrosion resistant
- Anti aging, weather
- Electrical insulation
Application
- Hot work protective wear
- Electrical euipment cover
- Thermal insulation blanket
- Fire curtain, welding blanket
- Construction
- Automotive industry

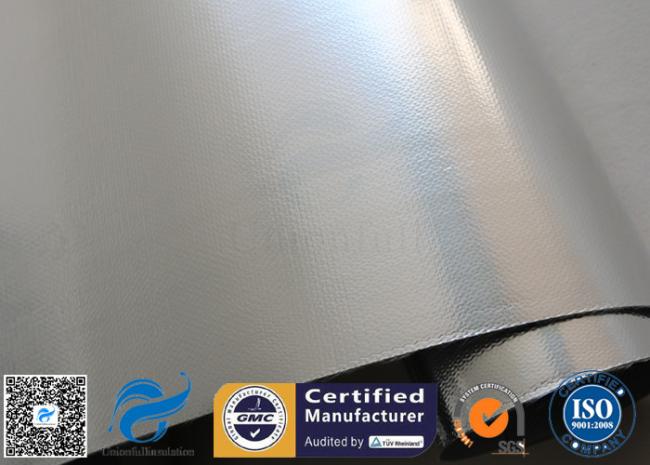

Pictures:
