Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket
580g 0.45mm Red Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket
0.45mm silicone coated fiberglass fabric is woven in satin weave. Its basic cloth is e-glass 430g/m2 fiber glass fabric. Silicone can be one side coated or two side coated, usually 40g, 60g, 80g, 100g per side. This one is coated with 75g/m2 red silicone on two sides, total weight is 580g/m2 and 0.45mm thick.
E-glass fiberglass fabric is fire resistant, oil/chemical resistant and tear resistance. Silicone coating provides better electrical insulation and abrasion resistance.
The basic fiberglass fabric can be used at temperature below 550℃ continuously. Silicone coating can resist heat below 260℃. Silicone coated fiberglass fabrics are mainly used to produce removable thermal insulation jacket, fire/welding blanket, fabric expansion joints, hot tunnel curtain, pipe anti corrosion, etc.
| Item | Silicone Coated Fiberglass Fabric |
| Material | E-glass Fiberglass |
| Weave | Satin |
| Thread Count | 20/11 Ends/CM |
| Weight | 580g/m2 |
| Thickness | 0.45mm |
| Width | 1 Meter |
| Servise Temperature |
Coating below 260℃ Fiberglas cloth below 550℃ |
Features:
- Heat inculation
- Fire resistance
- Electrical insulation
- Durability
- Teat resistance
- Chemical corrosion resistance
Application:
- Fire blanket
- Fabric expansion joint
- Electrical insulation
- Enginer heat insulation material
- Aerospace and other industrIes application

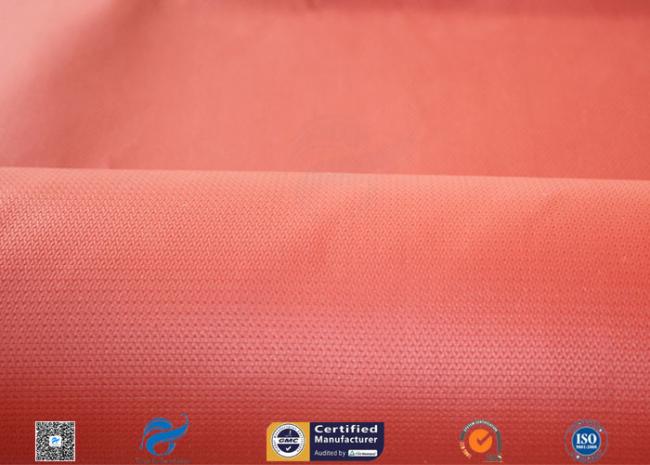

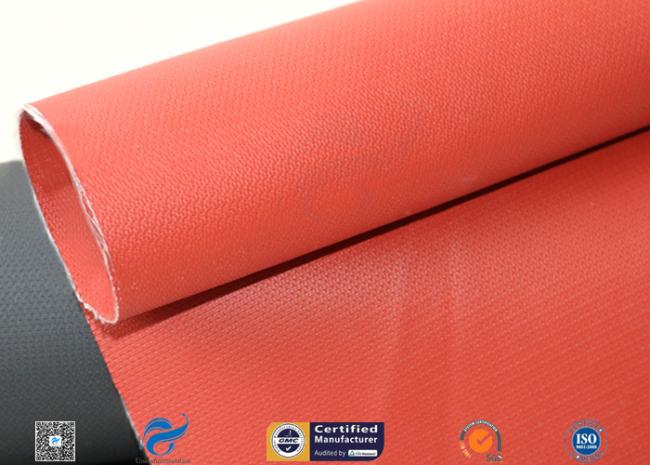

Picture:
