1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials
1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials

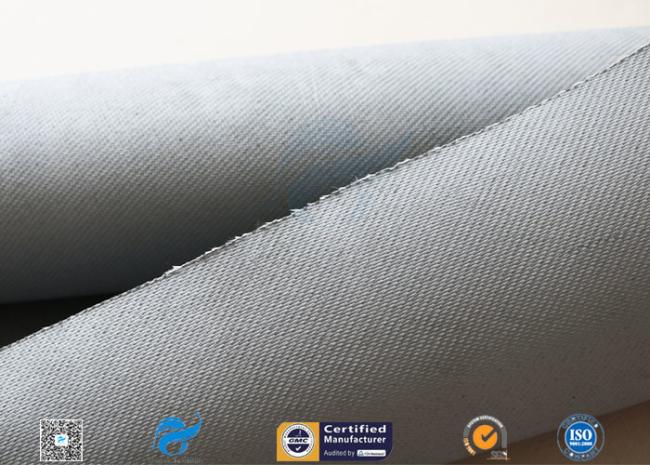

Basic cloth of this silicone coated fiberglass fabric is 3786 fiberglass cloth woven by e-glass fiberglass yarns, coating is grey silicone 125g/m2 on both two sides. Total weight is 1600g/m2. Fiberglass cloth is a high strength material. This specification is very heavy duty and durable.
Properties of this heat resistant fabric includes electrical insulation, heat resistance and durability, dimension stablity. The basic fiberglass fabric can withstand heat below 550℃ continuously and silicone coating can be used below 260℃.
Silicone coated fiberglass fabric is widely used in industrial insulation fields. It can be used to produce high temp insulation, insulation blanket, welding blanket, heat insulation part, fabric expansion joints and removable insulation jacket.
| Cloth | Silicone Fiberglass Fabric |
| Style | E-glass |
| Weave | Satin Weave |
| Count | 18/13 |
| Coating | Silicone, 125/125 |
| Total Weight | 1600g/m2, 47oz/yd2 |
| Thickness | 1.2mm |
| Width | 39 Inches |
| Temperature |
Silicone Coating below 260℃ Fiberglass below 550℃ |
Properties
- Fire resistance
- Anti hemical agents
- Anti aging, weather
- Durable
Application
- Fire, welding blanket
- Auto engine heat insulation
- Pipe corrosion resistance
- Fabric expansion joint
- Equipments electrical insulation cover
- Removable thermal insulation jacket
- Fiberglass pipe insulation
