Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm
0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation

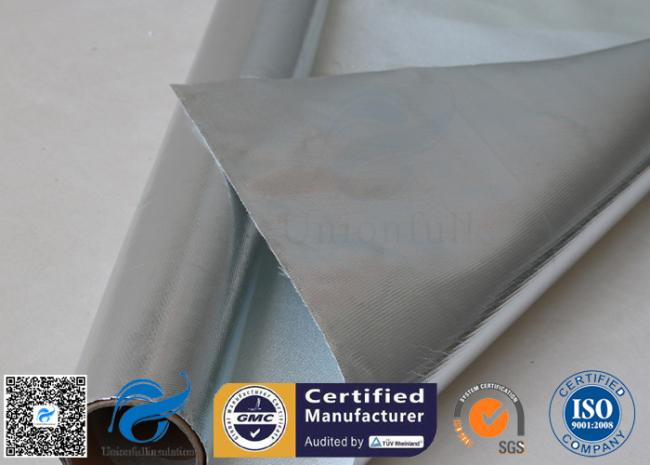

Silver coate fabric insulating material aluminium foil laminated fiberglass cloth is made of e-glass 850g/m2 fiber glass fabric, then this basic cloth is laminated with one layer of aluminium foil on fiberglass cloth. The adhesive is a kind of high temperature adhesive.
This cloth is woven in satin weave and very heavy duty. Glass fiber material is fire resistant, chemical resistant and electrical insulation. Thicknesses of aluminium foil are 7u, 18u, 25u and 50u max. Total weight of the coated fabeic is 880g/m2, about 26oz/yd2.
Fiberglass cloth can resist heat which is below 550℃ continuously. And its adhesive should be ued below 300℃. Foiled fiberglass fabric is widely used in industrial fields.
Data Sheet
| Material | Aluminium Foil Fiberglass Fabric | ||
| Weave | Satin | ||
| Thread Count | 18/13 per cm | ||
| Total Weight | 880g/m2 | ||
| Thickness | 0.9 mm | ||
| Aluminium Foil | 7micron/ 18micron/ 25micron | ||
|
Tensile Strength (N/5cm) |
8000/6000 | ||
| Width | 100cm, 125cm | ||
| Temperature |
Fiberglass: ≤550℃ Adhersive: ≤300℃ |
Features
- Heat reflective
- Non flammable
- Waterproof
- Chemical resistant
- High tensile strength
Application
- Welding blanket
- Fiberglass pipe insulation
- Automotive, car parts
- Environmentally friendly insulation
- Electrical insulating materials
- Insulation blanket
