Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation

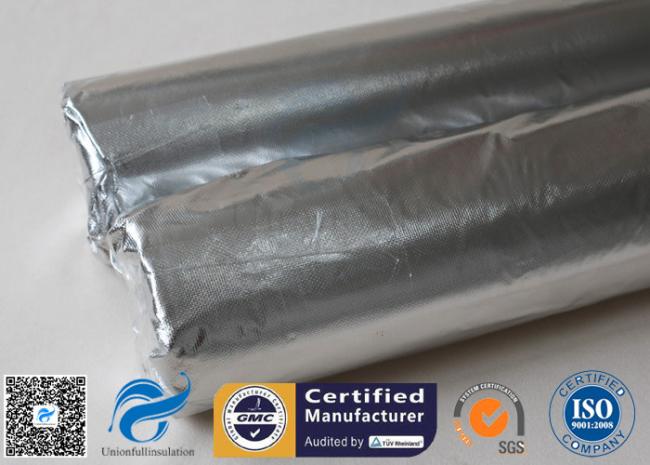

Aluminium foil fiberglass fabric is made of 430gsm satin weave fiber glass fabric laminated with a layer of aluminium foil by high temperature adhesive. Yarn count of silver coated fabric is 18/13 per cm. Fiber glass cloth is able to withstand continuous heat below 550℃. The high temperature adhesive can resist heat below 300℃.
Aluminized fiberglass cloth provides superior properties in a wide range of temperatures. What's more, it is oil resistant, waterproof, anti chemical agents, corrosion resistant and heat reflective. This cloth is widely used for insulation materials like pipe insulation and heat protective layer of glass wool.
Data Sheet
- Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
- Width: 101.6cm/121.9cm/152.4cm
- Roll Length: 50-100m
| Material | Aluminium Foil Fiberglass Fabric | ||
| Weave | Satin | ||
| Yarn Tex | Warp | EC9 33 2X2 | |
| Weft | EC9 33 2X2 | ||
| Total Weight | 430 gsm | ||
| Thickness | 0.43 mm | ||
| Aluminium Foil Thick | 7micron/18micron/25micron | ||
|
Tensile Strength |
Warp | 6000 N/5cm | |
| Weft | 4500 N/5cm | ||
| Standard Width | 1000mm | ||
| Work Temperature |
Fibreglass Cloth: 550℃ Adhersive: 300℃ |
||
Features
- Heat Reflective
- Waterproof
- Anti Corrosion
- Chemical&Oil Resistant
- Low Moisture Absorption
- Electrical Insulation
- High Strength
Application
- Spark foil faced insulation
- Oven insulation material
- Kiln heat insulation
- Petroleum Refineries
- Eco friendly insulation
- Expansion joint, removable insulation jacket
