High Silica Woven Fabric 1200℃ Welding Heat Resistant 1200GSM 39" Brown
High Silica Woven Fabric 1200℃ Welding Heat Resistant 1200GSM 39" Brown

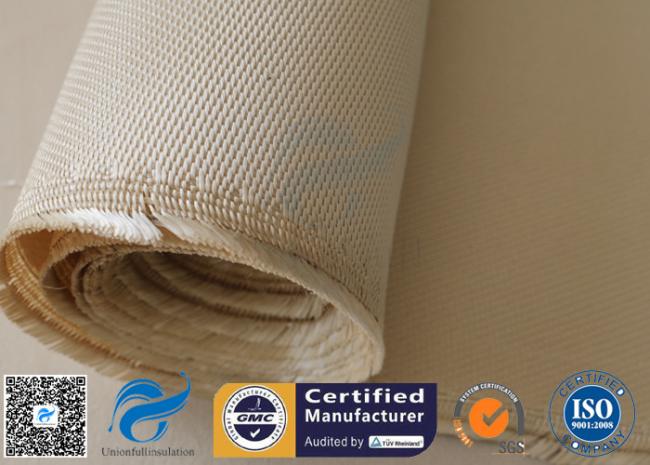

High temperature silica cloth, high temp silica cloth. It can be used for a wide application range of fire protection & thermal insulation such as welding pad cover, welding&flame fire blankets and welding curtains. This heavy duty 1.3MM fabric is weighed at 36oz/sq.yd (1200gsm), which is woven in cross twill weave. It has a minimum silicon dioxide content of 96% and it is able to withstand a continuous heat up to 1200°C. And softening point of 36oz high silica cloth is close to 1700℃. Standard width is 100cm/39 inches. Our roll length is 50 meters.
Specification
| Items | High Silica Cloth |
| Silicon Dioxide Content | ＞96% |
| Area Weight | 1200g/m2 |
| Thickness | 1.3mm |
| Color | Brown |
| Weave Type | Satin (break twill, cross twill) |
| Width | 1000mm, 39 inches |
| Work Temperature | 1200°C Continuously |
Features
- 96% SiO2 content
- Flame, heat resistant
- Heavy duty, flexible, easy to fabricate
- Anti chemical corrosion
- Non-asbestos, no toxic, eco-friendly
- Electrical insulating
Applications
-
Electrical equipment thermal insulation blanket
-
Welding sparks protection
-
Automotive heat resistance cover
-
Industrial fire retardant curtains
-
Laboratory ovens
