Silicone Coated Fiberglass Fabric Grey 1050GSM 39" Engine Exhaust Covers
Silicone Coated Fiberglass Fabric Grey 1050GSM 39" Engine Exhaust Covers

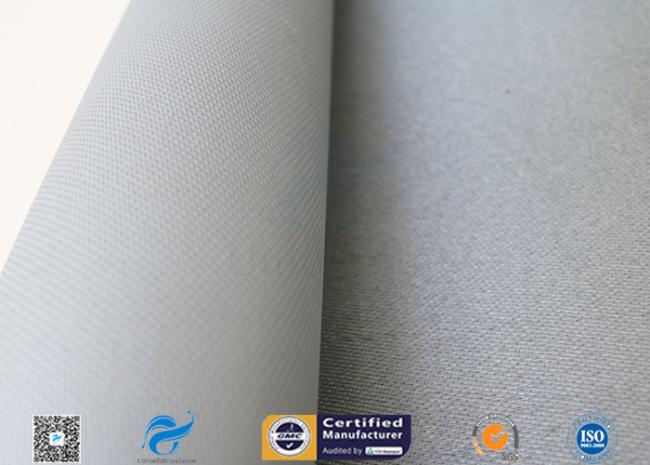

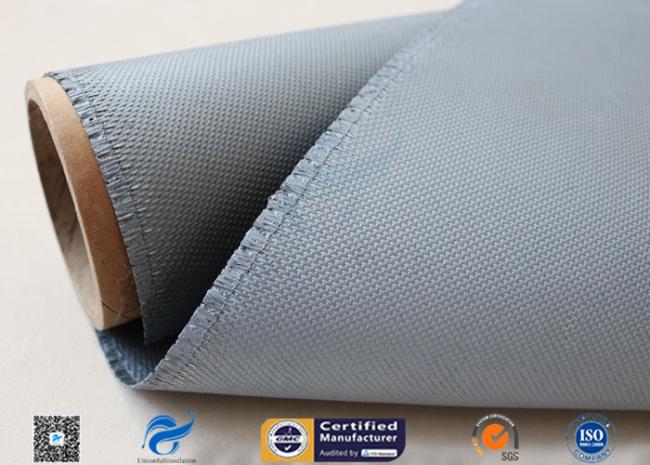

This 0.85mm grey silicone coated fiberglass fabric is made of satin woven 850g/m2 e-glass basic fiberglass cloth. Then it is coated with 200g/m2 grey silicone on two sides. 31oz silicone coated fabric is a heavy duty and high strength material. Standard width is 39 inches/1000MM and roll length is 50m. Most common colors is grey, others can be red, black, green etc.
Silicone heat insulating fiber glass fabric is widely used for thermal insulation application. It is chemical resistant, moisture and oil resistant, heavy duty. This electrical insulated fiberglass basic fabric is able to withstand heat below 550 degree Celsius. Silicone coating can be used below 260℃. What's more, it is flexible and easy to fabricate so that its application includes welding blanket, fire resistant curtain, cable heat&electrical insulation, pipe barrier blanket.
| Item | Silicone Coated Fiberglass Fabric |
| Yarn | E-glass |
| Weaving | Satin (Cross Twill) |
| Count | 8/6 |
| Weight | 1050g/m2, 31OZ |
| Thickness | 0.85mm |
| Standard Width | 1000mm |
| Temperature |
Fiberglass Cloth ≤ 550℃ Silicone ≤ 260℃ |
| Fabric | heat resistant materials, oven insulation material |
Properties
- High density
- Heat&flame resistant
- Anti chemical agents
- Abrasion resistant
- Eco-friendly, non toxic
- High temperature heat resistant fabric
Application
- Energy heat insulation
- Cable electrical insulation cover
- Welding blanket
- Fabric expansion joint
- Smoke fire curtains
- High temperature resistant fabric
- Rubber impregnated fabric
- Furnace repair
