Electronic Fiberglass Fabric 200GSM 7628 0.2MM Plain 550℃ High Strength
Price:
$0.80--1.35/m2
MOQ:
200 Meters
Delivery Time:
20 Working Days After Payment
Brand:
Unionfull
Product Description

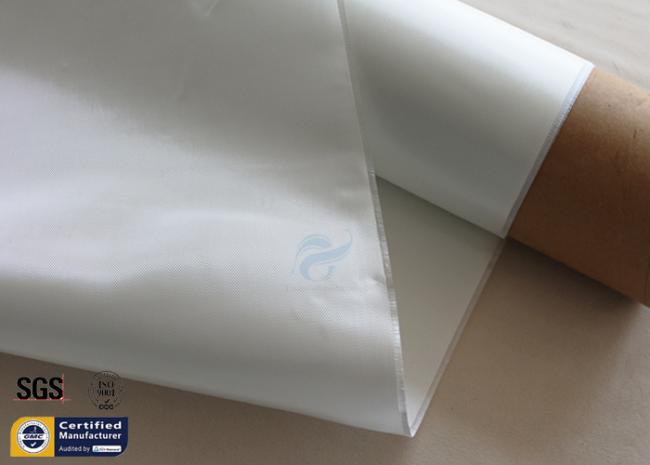

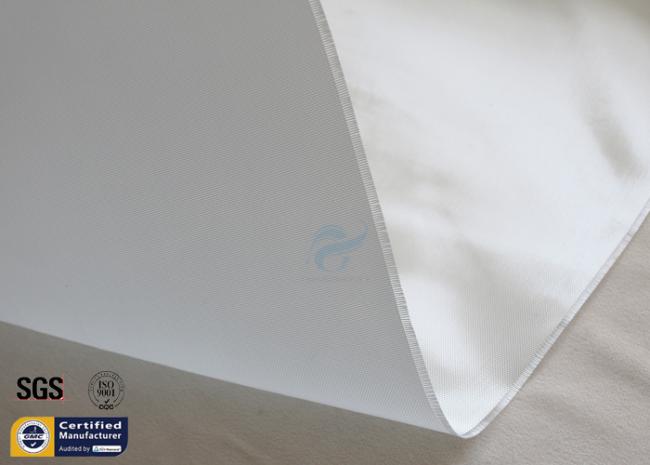

Electronic Fiberglass Fabric 200GSM 7628 0.2MM Plain 550℃ High Strength
7628 e-glass fiber glass cloth is one of the electronic grade fiberglass cloth. It is woven in plain weave and it is weighed at 200g/m2. Standard roll is 1m wide x 100m long.
Electronic fiber glass cloth is high strength, flame resistant, chemical&oil resistant and electrical insulated, which makes it a suitable material for electronics industial application. Main application is printed circuit boards and insulation lagging.
Fiberglass fabric is able to be used from -50 to 550℃ temperature range.
Data Sheet Of 7628
| Item No. | 7628 Fabric |
| Style | Electronic Fiberglass Fabric |
| Thread Count | 17.3/13 per cm |
| Yarn | EC9 68 1X0, EC9 68 1X0 |
| Weave | Plain |
| Weight | 200g/m2 |
| Thickness | 0.2mm |
| Color | White |
| Temperature | 550℃ |
| Roll Length | 100mtr, or customized |
Properties
- High intensity
- Electricity insulation
- Low static, fuzz
- Fire&heat resistance
- Compatibility with other resins
- Chemical resistance
- Anti corrosion
- Physical/chemistry stability
- Tear resistance
- Thermal properties of fiberglass
- Fiber glass roll
Application
- Copper clad lamination
- Copper substrate
- Insulation board
- Reinforce plastics and composites
- Aircraft, automobiles
- Boat, surfboard building
- Bath tubs and enclosures, hot tubs building
- Water tanks, swimming pools
