4X4MM PTFE Coated Fiberglass Mesh Fabric Conveyor Belt 450GSM 2.2M
4X4MM PTFE Coated Fiberglass Mesh Fabric Conveyor Belt 450GSM 2.2M

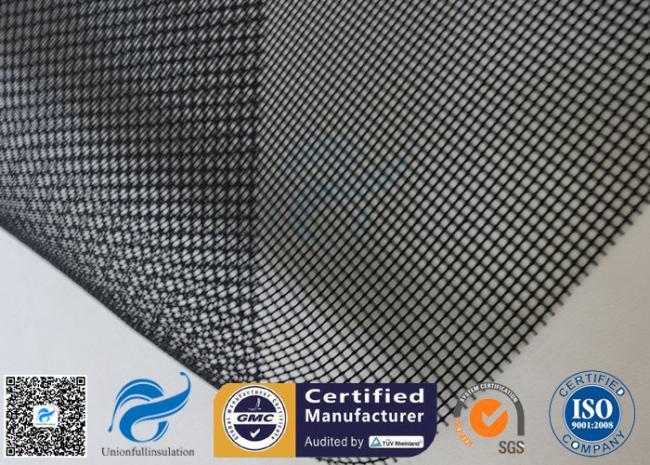

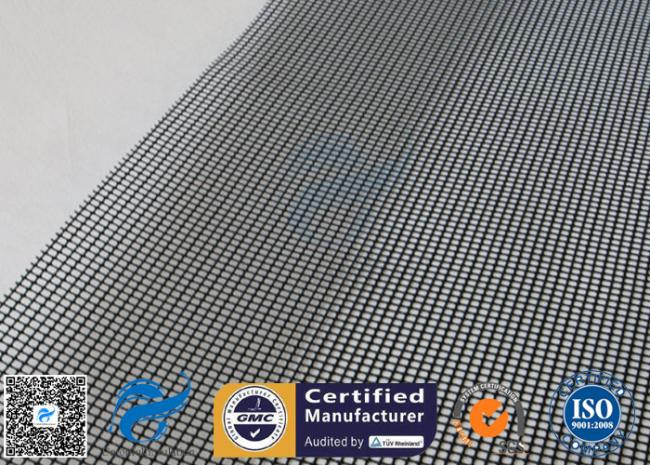

Conveyor belt mesh fabric is made of fiber glass open mesh impregnated with black color food grade PTFE. Open mesh size are 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm. Common used open mesh size is 4x4mm. This black color 4x4mm mesh fabric is weighed at 480g/m2 (14.16oz). Fiberglass open mesh is high strength, durable, abrasion resistant, oil&chemical resistant. Due to its heat&flame resistant, non stick and non toxic properties, PTFE coated fiberglass mesh fabric is widely used in food industry.
Continuous heat resistant temperature of PTFE fiberglass open mesh conveyor belt is -50 to 260℃. With non stick PTFE coating, chemical agents like silicone rubber won't stick on the mesh belt. After using, it is easy to be cleaned by soapy water.
Features
- heat resistant, - 50°C to 260°C
- high tensile strength, durable
- light weight, tear resistant
- non stick, washable
- chemical agents&oil resistant
- anti UV, weather
Specification
Edge Reinforcement: PTFE film or PTFE coated fiberglass fabric
Common Joint: bull nose joint
| Mesh Size | Material | Thickness | Weight | Temperature | Max Width |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m |
Applications
- Tortilla presses
- Heat resistant conveyor belt
- Dryer belt replacement
- Side and base sealing auto pack machines
- Screen printing conveyor dryer
- Conveyor belt heat resistant
