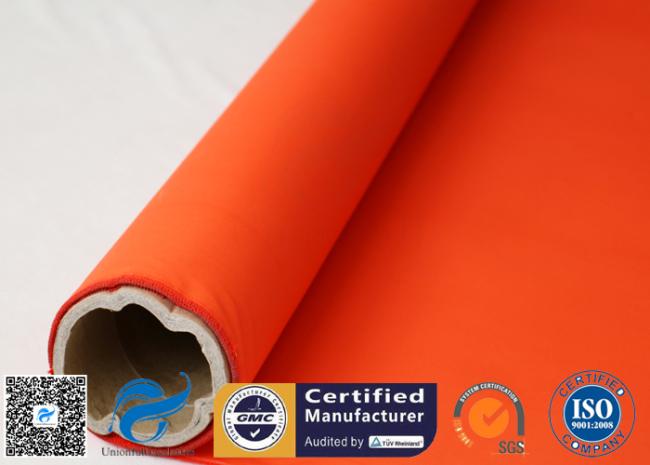

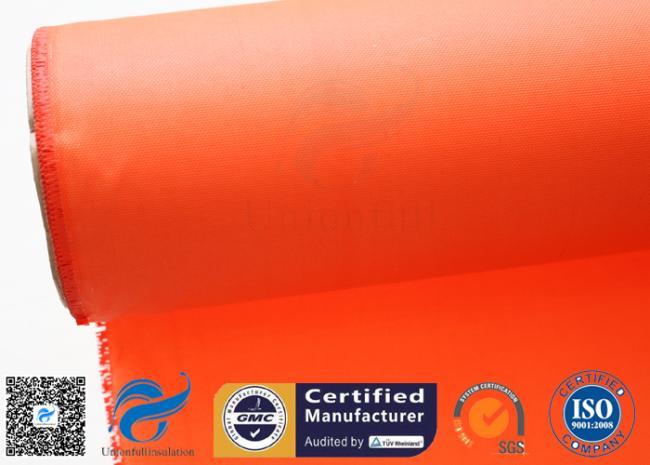

Acrylic Coated Fibreglass Fabric Orange 7628 260℃ 500℉ Chemical Resistant
Acrylic Coated Fibreglass Fabric Orange 7628 260℃ 500℉ Chemical Resistant
Fiber glass fabric is woven by e-glass fiberglass filament in plain weave. This cloth is flame&heat resistant, abrasion resistant but easy to fabricate. In order to achieve different final requirements, basic fiber glass fabric will be coated with silicone/PU/PVC/PTFE/Acrylic on one side or two sides. This 0.22mm Acrylic impregnated glass fabric is made of 200gsm e-glass fiber cloth and 30/30 coating. Coated glass fabric is weighed at 260g/m2. Fiber glass cloth is able to withstand continuous heat below 550℃, Acrylic coating can resist 260℃ heat continuously.
Acrylic coated fiberglass fabric is high heat resistant fabric, non toxic, sparks protective, chemical acid&alkali resistant, anti corrosion, electrical insulated. Its applications include pipe thermal insulation, industrial fire blanket, insulation blanket, insulation cover, energy insulation
.
Specification
| Item | Acrylic Coated Fiberglass Fabric |
| Weight | 260gsm |
| Thickness | 0.22mm |
| Color | Orange |
| Yarn | G75 1/0 0.7Z, G75 1/0 0.7Z |
| Thread Count | 17.3/13 |
| Work Temperature |
Coating: -50℃ to +260℃ |
| Standard Width | 1270mm |
| Roll Length | 50m |
Features
- Corrosion resistant
- Chemical agents resistant
- Flexible, abrasion resistant
- Waterproof
- Fireproof clothing material
- Coated fiberglass fabric
- Flame resistant material
Application
- Heat insulation
- Molten metal splash/spark protection
- Pipe insulation
- Engineering fire protection
- Kiln, oven heat insulation
