4HS Flame Retardant 260℃ Silicone Coated Fiberglass Fabric Fire Blanket 0.45mm
4HS Flame Retardant 260℃ Silicone Coated Fiberglass Fabric Fire Blanket 0.45mm
Silicone coated fiberglass fabric is a new type of high molecular elastomer which combined with the fiberglass fabric soaked in suspending emulsion. Silicone fiber glass with environmentally friendly has excellent performances such as flame retardant, low smoke and non-toxicity.
Due to its unique high temperature resistance and excellent weathering resistance, the silicone fiberglass cloth is soft and tough, and has been widely used in aerospace, chemical, large-scale power generation equipment, thermal insulation, fire prevention, etc. Also it is an environmentally friendly product.
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
(1) non-adhesive, not easy to adhere to any substance.
(2) low friction coefficient, is the best choice for oil-free self-lubrication.
(3) Good heat resistance Glass fiber has good heat resistance. With the increase of the content of high melting point components such as SiO 2 , ZrO 2 , Al 2 O 3 , CrO 3 , the heat resistance of the fiber is correspondingly increased, for example, the high silica fiber having a SiO 2 content of 96% (mass fraction), and the use temperature is 1000 ° C.
(4) Resistant to chemical corrosion, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents.
(5) With high insulation properties, UV protection, anti-static.
Application:
1. Insulation materials
Solving the safety performance of the motor can improve the performance of the motor, and can also reduce the size of the motor, so that the manufacturing cost of the motor is greatly reduced.
2. Filter cloth
Because glass fiber is not afraid of acid and alkali corrosion, it can be used as a filter cloth for chemical factories. This filter cloth can be dustproof, moisture proof and durable.
3.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
4.glass fiber cloth is mostly used in hand lay-up process, glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.
5 glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

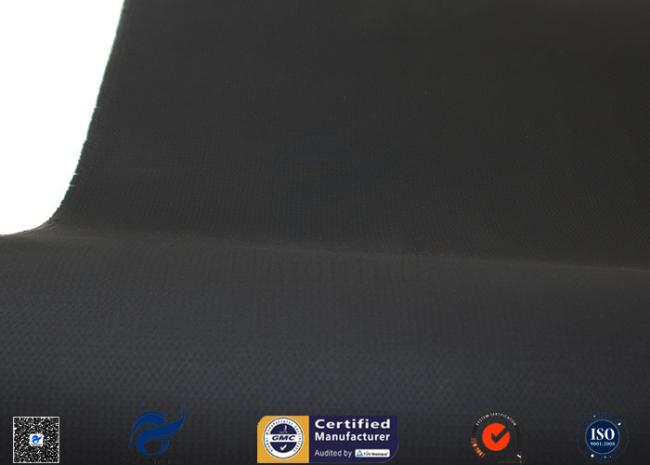

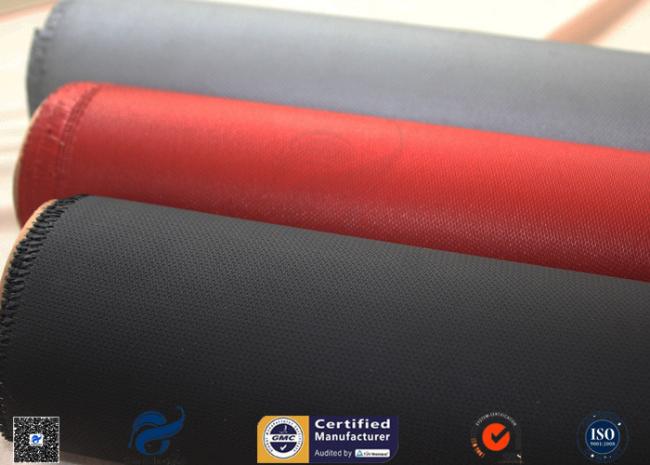

Pictures:
