Materials of Unionfull insulation jacket includes outside silicone coated fiberglass fabric and inside fiber glass needled mat. This insulation items can protect your equipment from harsh environmental conditions. It allows removing and reinstalling of the jackets. Our heat insulation cover also provide protection against freezing and overheating.

Fiber glass heat resistant cover is produced to insulate components includes gate valves, globe valves, PRVs, steam traps, unions, flanges, power generation and heat exchanger etc.

Because of inspection and maintenance of heat exchangers is essential, a removable exhaust heat shield is better than thick stay-in-place insulation.

Usually even there is generally have built-in insulation in the outer casing, heat exchangers do not perform their duty at optimal efficiency. If the heat exchanger experiences surface temperatures drastically different than the ambient temperature, valuable heat will radiating away. In the cases of larger heat exchangers or facilities with multiple units, the amount of energy loss can be substantial. Traditional insulation way like insulation coatings are a possible solution but it needs a lot of labor and time in application. Also, it may take days to dry and weeks to fully cure.

Properties

1. Prevent wasting energy for pipes, water systems undergo disproportionate stress
2. Fit well. Our heat exchanger jacket is deisgned based on customer's requirement.
3. Easy to install and remove. Fire retardant Velcro straps and metal buckles allow convenient installation
4. Save energy cost. Blanket keeps expensive heat in equipment
5. Stop heating the wrong spaces. Steam pipes, exchangers, pumps protective blanket will allow you to lower the thermostat while achieving a higher level of comfort and safe
6. Improve your workplace comfort. Especially in mechanical room, a crawl space, or a boiler room. Removable insulation jackets will keep thetemperature of work area at normal level
7. Great construction. Heat resistant fiber glass fabrics and needled mat, fire retardant kevlar thread, metal buckles. We sew the components together firmly, ensuring the insulation interior material is sewn into jacket to prevent moving. The finish jacket is well sewed, abrasion resistant, reusable, removal.

Data Sheet

IR Test

IR Test result of removable jacket showed that when the temperature in equipment goes up to 300℃ continuously, the surface temperature of this jacket is around 35℃.

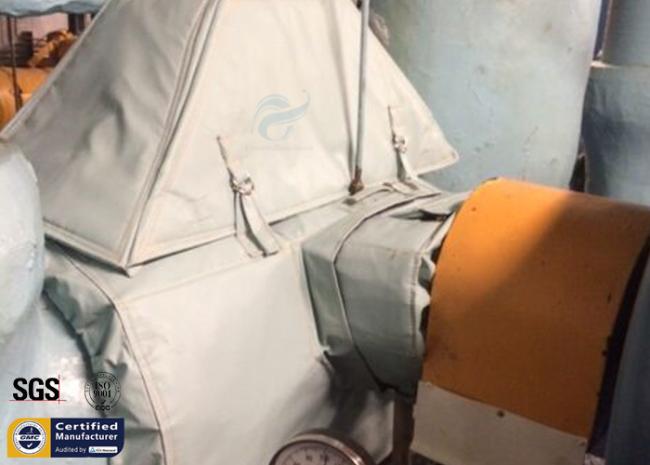

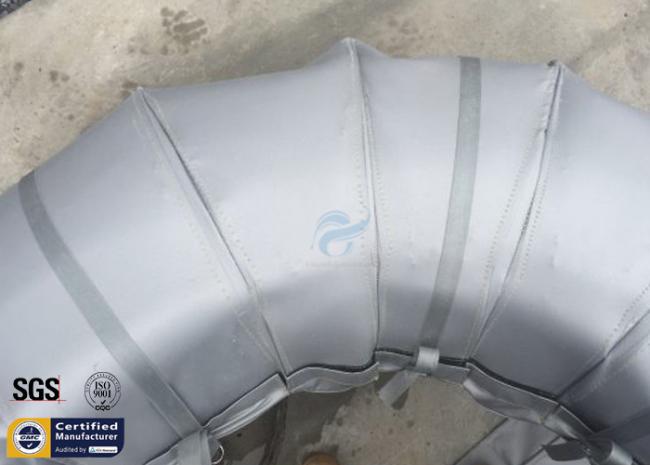

Photos
