260℃ Heat Resistant Plain Weave Gray Silicone Coated Fiberglass Fabric 0.45mm
260℃ Heat Resistant Plain Weave Gray Silicone Coated Fiberglass Fabric 0.45mm
Silicone coated fiberglass fabric is made of alkali free base glass fiber coated with special silicone rubber on the surface. Silicone coated fiberglass cloth is also a new type of material with high performance like flame retardant, heat resistant, high strength and corrosion resistance etc.
UPSE-8732D80 is a plain weave fabric and the thickness is 0.45mm. The plain weave consists of yarns interlaced in an alternating fashion, one over and one under every other yarn. The plain weave provides good fabric stability. Due to it's heat resistant properties, the temperature of silicone fiberglass cloth can be from -50 ℃ to 260℃.
DATA:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8732D160 | 590 | 0.5 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
1.High and low temperature resistance: work temperature up to 260°C
2. Flame retardant : It can absorbs a large amount of heat when it is burned by the flame and can prevent the flame from passing through and isolating the air.
3.Excellent thermal conductivity to meet a variety of thermal requirements.
3.Chemical resistant, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents.
4.Constant size
Silicone rubber is used as the base material, the texture is soft, and it is easy to deform after being pressed to ensure complete gap filling.
6.Excellent heat aging and high insulation
Applications:
1.Construction
Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
2.Industry
pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.
3.Anti-corrosion aspect
Silicone-coated glass fiber can be used as the inner and outer anti-corrosion layer of pipelines and storage tanks. It has excellent anti-corrosion performance, high temperature resistance and high strength. It is an ideal anti-corrosion material.
4.Electrical insulation
Electrical properties Alkali-free glass fiber has high insulation resistance, good dielectric properties, low hygroscopicity and high temperature resistance. It is an electrical insulating material in the electromechanical industry with remarkable effects.
5.Temperature resistance: as fire blanket, fire curtain, temperature resistant flame retardant material
6.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

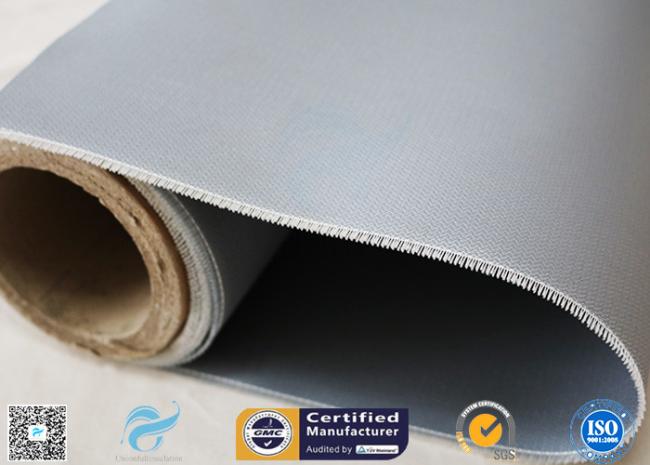

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
