Medium Alkali Heat Resistant 510g C-glass Silicone Coated Fiberglass Fabric
Medium Alkali Heat Resistant 510g C-glass Silicone Coated Fiberglass Fabric
Glass fiber is divided into three categories according to the content of Na2O contained: alkali-free glass fiber, medium alkali glass fiber, high alkali glass fiber. The lower the alkali content, the better the flexural and tensile strength.
Alkali-free glass fiber is mostly used for reinforcing and insulating materials. High-alkali glass fiber is mostly used in dilute acid environment, such as battery separator, electroplating tank, acid storage tank, acid filter material, etc., medium alkali glass fiber is a semiconductor and. Glass fiber has high strength, corrosion resistance, light transmission and good insulation compared with metal.
UPSC-8732D80 is the 430g basic fiberglass coated with 40g silicone on both sides, so total weight is 510g, and thickness is 0.45mm.
DATA:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 470 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
Properties:
1.High strength
Soft but high strength, no need to reinforce natural tear resistance, significant wind resistance and mechanical properties for frequent use
2.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.
3.Low thermal conductivity:0.035W/M·K—0.045 W/M·K±0.005
4.High temperature resistant
can be work on the temperature -50 to 260℃.
5.Chemical resistant
Glass fiber has good stability under the action of water and various invading candles
6.Fire prevention
Fiberglass Sunglasses have flame retardant properties not found in other fabrics. After the fire, the inner skeleton of the fabric is made of glass fiber, so it will not be deformed and will not be charred.
Applications:
1.Welding blanket/ fireproof blanket
The fiberglass cloth is suitable for use in places such as welding and sparking, which may cause fire alarms. It can resist spark splash, slag, welding spatter, etc., and can isolate the task, separate the task layer, and eliminate the fire risk that can be caused by the welding task.
2.In petrochemical industry
We often use fiberglass cloth to make pipes and storage tanks for storage of strong acid and alkali substances, which is the chemically stable nature of its application.
3.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
4.Construction
Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
5.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.
6. Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life will also be used.

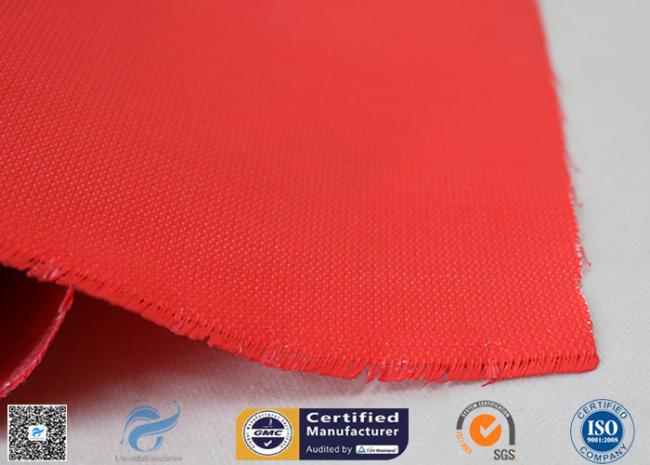

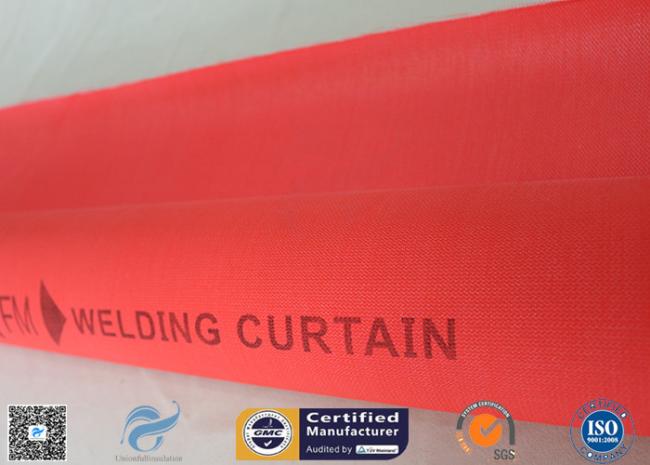

Pictures:
