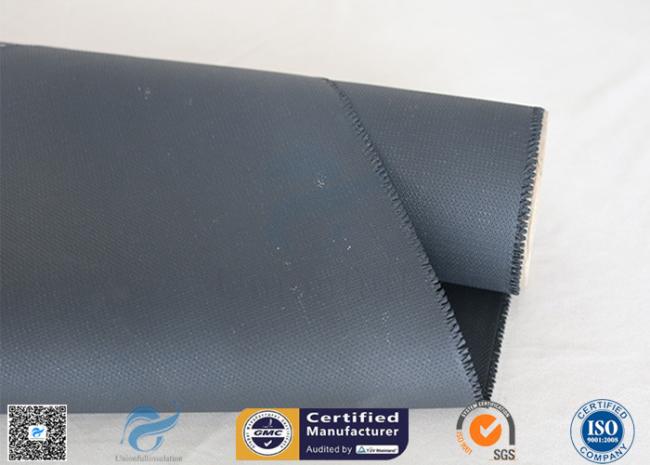

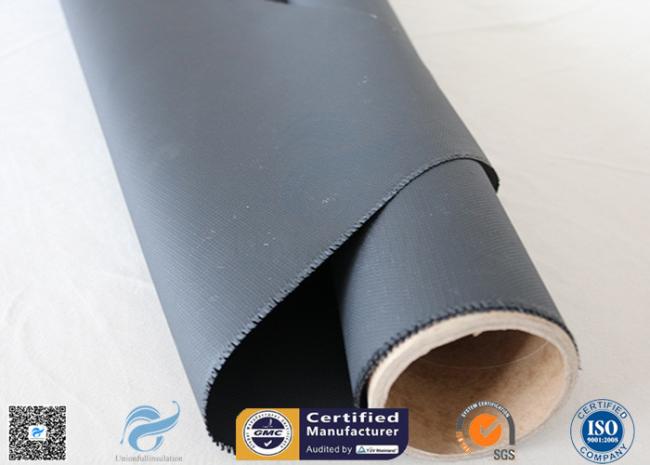

Welding Blanket Fireproof Jacket 4HS 590g Silicone Coated Fiberglass Fabric Black
Welding Blanket Fireproof Jacket 4HS 590g Silicone Coated Fiberglass Fabric Black
Silicone Coated Fiberglass Fabric has excellent temperature resistance, operating temperature can be from 260℃ to -50℃. The fabric absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air. It is mainly used in industry: heat insulation, fire prevention and flame retardant, and also used to making Welding blanket/fireproof jacket.
UPSC-8732D160 is coated with 80g silicone rubber on both sides, and it's total weight is 590g/m2.Absolutely, the weight can be customized as your requirements.
This type of fabric is 4HS (four-harness satin), in this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.The 4HS is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 470 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
1.Transparent, light can pass through
2.Flame retardant performance: non-combustible
3.High modulus of elasticity and good rigidity.
4.High Temperature resist
Operating temperature from -50℃ to 260 ° C
5.High tensile strength, low elongation (3%)
6.Anti-corrosion
Resistant to strong acids, alkalis, aqua regia and various organic solvents.
Application:
1.In the transportation industry, buses, yachts, tankers, cars, etc. are used.
2.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
3. FRP fiberglass cloth is the protection of the key unit of public security fire safety. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.
4.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
5.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.
Pictures:
