80/80g Silicone Chemical Resistant 1.2m Width Silicone Coated Fiberglass Fabric

80/80g Silicone Chemical Resistant 1.2m Width Silicone Coated Fiberglass Fabric

Silicone coated glass fiber can be used as the inner and outer anti-corrosion layer of pipelines and storage tanks. It's an ideal anti-corrosion material, as it has excellent chemical resistant performance, high temperature resistance and high strength.

UPSE-8732D160 is a glass fibre product coated on both sides with silicone rubber that meets the following requirements:

.Coating Type: Silicone Rubber

.Thickness: 0.45mm

.Coating Weight: 80/80g

.Total Weight: 590g/m2

.Width: 1.2m

.Operating Temperature from -50℃ to 260℃

.Color: Gray/Red/White/Orange/Blue/Yellow

Data:

Properties:

1.Excellent thermal conductivity to meet various heat dissipation requirements

2.Flame retardant performance:

Fiberglass fabric can absorb a lot of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

3.Good optical performance, light can pass through

4.High Temperature resist

Working temperature can be from -50℃ to 260 ° C

5.Anti-corrosion

Resistant to strong acids, alkalis, aqua regia and various organic solvents.

6.Electrical Insulation

Application:
1.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

2.Electrical insulation
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.

3.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.

4.non-metallic compensator
The non-metallic compensator is a flexible connecting device for the pipeline, which can solve the problem of thermal expansion and contraction to the pipeline. The silicone rubber coated glass fiber membrane structural material is used as the substrate of the flexible expansion joint, and has high use temperature and corrosion resistance. And aging resistance, excellent flexibility and flexibility. It has been widely used in petroleum, chemical, cement, steel, energy and other fields, and has achieved good results.

5.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

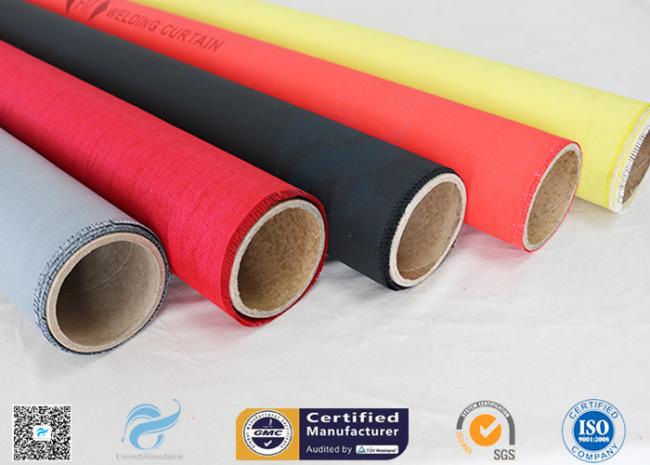

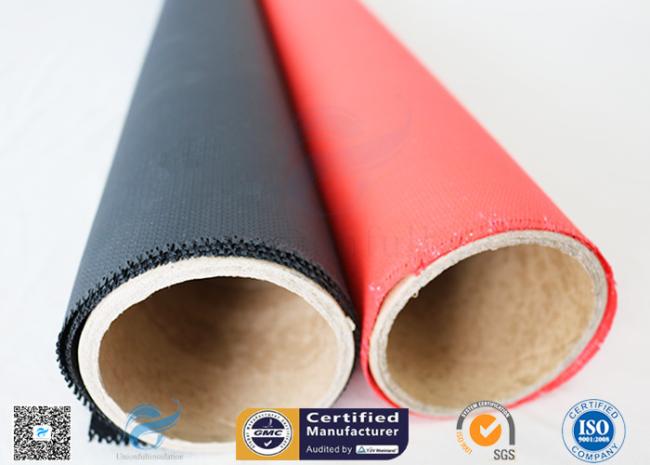

Pictures:
