1.5m C-glass High Intensity 40/40g Silicone Coated Fiberglass Fabric For Fireproof
1.5m C-glass High Intensity 40/40g Silicone Coated Fiberglass Fabric For Fireproof
Glass fiber has excellent perpormance like high intensity, fireproof/waterproof, high temperature resist, anti-cprrosion etc., these characteristics make the use of fiberglass much wider than other types of fibers, and the development speed is far ahead.
Fiberglass Fabric is divided into different grades according to composition. They are E-glass, C-glass, S-glass. E-glass fiber is most commonly used and is widely used in electrical insulation materials. C-Glass, also known as medium-alkali glass, is characterized by chemical resistance, especially acid resistance, superior to E-glass. It is always used in battery separators, chemical filters.
UPSC-8732D80 has the specification as below:
.Thickness: 0.45mm
.Coating: 40/40g Silicone Rubber
.Total Weight: 510g/m2
.Width: 1.5m
.Operating Temperature from -50℃ to 260℃
.Color: Red
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 470 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
1.High modulus of elasticity and good rigidity.
2.It is an inorganic fiber with incombustibility
3.Low water absorption.
4.Scale stability and heat resistance are excellent.
5.Anti-corrosion
Resistant to strong acids, alkalis, aqua regia and various organic solvents.
6.High intensity, small elongation (3%)
Application:
1.Because silicone cloth has fireproof effect, it is also called fireproof cloth. It has high temperature and fireproof effect and is widely used in high temperature soft connection.
2.In the construction industry, glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
3.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
4.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.

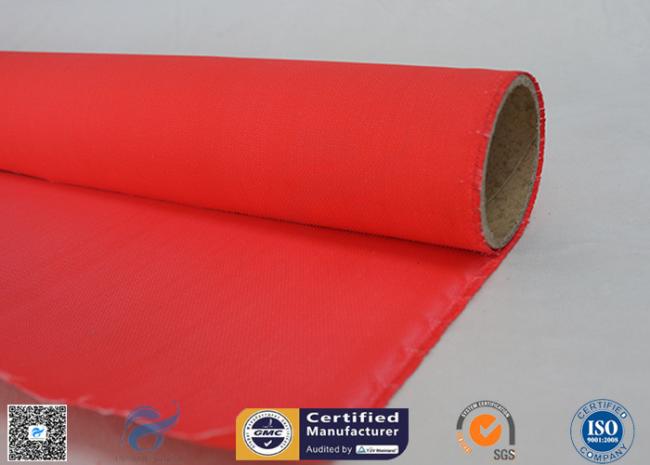

Pictures:
