0.45mm 1.5m Wide 510g / M2 E - Glass Fiber Silicone Coated Fiberglass Fabric Heat Resistant

0.45mm 1.5m Wide 510g/m2 E-glass Fiber Silicone Coated Fiberglass Fabric Heat Resistant

E-glass fiber also known as alkali free fiberglass, which R2O content is less than 0.8%. Its chemical stability, electrical insulation properties and strength are very excellent. Mainly used as electrical glass fiber reinforced materials ,insulation materials and tire cords.

C-glass (Medium alkali fiber): R2O content is 11.9%-16.4%. Because of its high alkali content, it can not be used as electrical insulating material, but its chemical stability and strength are still good. Generally used as woven fabric substrate, latex cloth, window material substrate and acid filter cloth.

Unionfull's products have good reputation among customers all over the world. As we have approved by ISO9001, TUV,SGS,and we are the winner of the IMO rules:

.Smoke & Toxicity Testing

.Non-Combustibility Testing

.Flame Spread Testing

UPSE-8732D80 meets the requirements as following:

Coating: 40g silicone rubber on each side

Weight: 510g/m2

Thickness:0.45mm

Width: 1.5m

Length: 50m per roll

Temperature: Fiberglass cloth ≤ 550℃

                      Silicone coating ≤ 260℃

Type: E-glass(Alkali free)

Feature: Heat resistant, High strength, Flame protection

Properties:

1.Non-flammable

It is inorganic fibers, the fire-retardant grade meets the IMO standard

2.Heat Resistant

Under low temperature -70 °C does not deform, not brittle, and can be intact as ever up to high temp.260℃

3.Non-stick, not easy to stick on any substance.

4.High strength, soft and tough

5.Good weather ability,the service life can be as long as ten years

6.Good chemical resistance

Application:

1.It is a fantasy protection thing for the public security fire safety department. When it is used for construction like welding, cutting in public places such as large shopping malls, supermarkets, hotels, etc. Using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk

2.Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.

3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

Data:

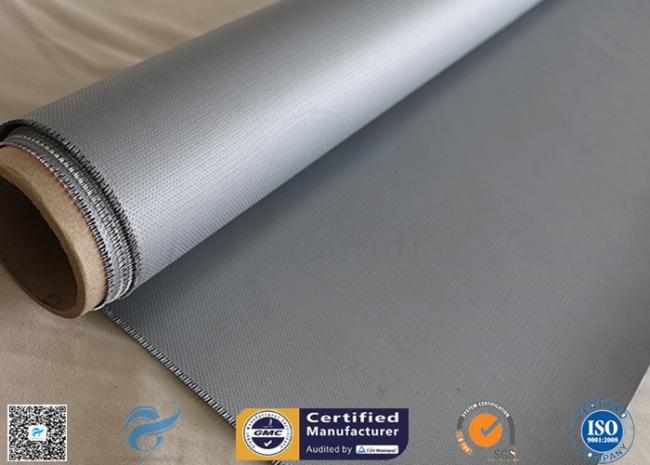

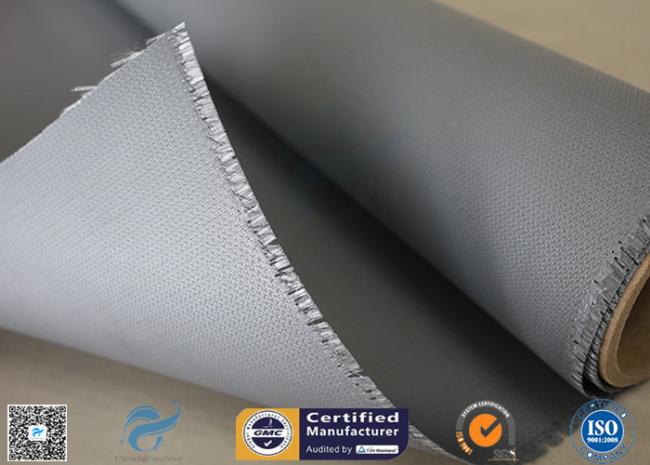

Pictures:

Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
