Gray Color Silicone Rubber Coated Fiberglass Fabric 260℃ Satin Weave 1m Wide

Price Negotiable
Price: usd2.8~3.8/m2
MOQ: 500m2
Delivery Time: 15days after receive the payment
Brand: Unionfull
Product Description

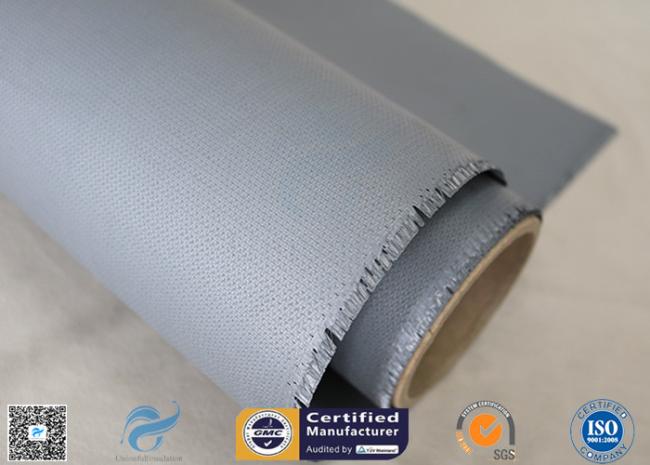

Gray Color Silicone Rubber Coated Fiberglass Fabric 260℃ Satin Weave 1m Wide



Glass fiber is an inorganic non-metallic material with excellent properties. The original English name is: glass fiber or fiberglass. The components are silica, alumina, calcium oxide, boron oxide, magnesium oxide, sodium oxide, and the like. It is a process of melting, drawing, winding, weaving, etc. by using glass balls or waste glass as raw materials. Finally, various types of products are formed. The diameter of the glass fiber monofilament ranges from a few micrometers to twenty micrometers, which is equivalent to 1/20-1/5 of a hair strand. Each bundle of fiber strands has hundreds or even It consists of thousands of monofilaments, which are commonly used as reinforcing materials in composite materials, electrical insulating materials and thermal insulation materials, circuit boards, etc., and are widely used in various fields of the national economy.



Unionfull can produce any size as your reqiuirements like width, weight per square meter. We also can make the cloth into welding blanket/fire blanket, insulation jacket etc.

We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East.



Properties:

1.Excellent release properties

2.Good heat insulation

Unbder low temperature -70 °C does not deform, not brittle, and can be intact as ever up to high temp.260℃

3.Anti-corrosion

Corrosion resistant to strong acids, alkalis, aqua regia and various organic solvents

4.Non-flammable

Flammability ≤25%

5.Low friction coefficient is the best choice for oil-free self-lubrication.

6.With high insulation properties, UV protection, anti-static.



Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.



2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



3. In the transportation industry, buses, yachts, tankers, cars, etc. are used.



4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.



5.In the construction industry, kitchens, column beams, decorative panels, fences, etc. are applied.





Data:

Item Name Silicone Coated Fiberglass Fabric
Products Code UPSE-8732D80
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

Weight(g/m2) 510g/m2 (430g+40g+40g)
Width 1000mm
Thickness 0.45mm
Color Gray
MOQ 500m2
Ends Warp/Weft(cm) 17.4/14
Tensile Strength(N/MM) 270/170
Yarn type(Warp/Weft) G37 1/0 0.7Z /G37 1/0 0.7Z
Length 50m per roll



Pictures:
